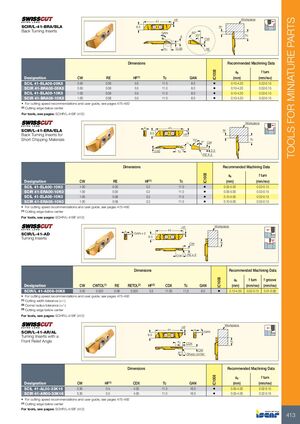

TOOLS FOR MINIATURE PARTS HF Workpiece 41 SCIR/L-41-BRA/BLA 8.5 ap Back Turning Inserts GAN 60° 4 20° Tc CW Tc 0.95 RE Dimensions Recommended Machining Data ap f turn IC1008 Designation CW RE HF(1) Tc GAN (mm) (mm/rev) SCIL 41-BLA08-05K8 0.50 0.08 0.5 11.0 8.0 • 0.10-4.20 0.02-0.15 SCIR 41-BRA08-05K8 0.50 0.08 0.5 11.0 8.0 • 0.10-4.20 0.02-0.15 SCIL 41-BLA08-10K8 1.00 0.08 0.5 11.0 8.0 • 0.10-4.20 0.02-0.15 SCIR 41-BRA08-10K8 1.00 0.08 0.5 11.0 8.0 • 0.10-4.20 0.02-0.15 • For cutting speed recommendations and user guide, see pages 475-492 (1) Cutting edge below center For tools, see pages: SCHR/L-41BF (412) Workpiece 4 41 SCIR/L-41-ERA/ELA ap 8.5 Back Turning Inserts for HF Short Chipping Materials 70° Tc 3° CW 0.95 Tc 0.5 RE X 2 Dimensions Recommended Machining Data ap f turn IC1008 Designation CW RE HF(1) Tc (mm) (mm/rev) SCIL 41-ELA00-10K0 1.00 0.00 0.2 11.0 • 0.05-5.00 0.02-0.15 SCIR 41-ERA00-10K0 1.00 0.00 0.2 11.0 • 0.05-5.00 0.02-0.15 SCIL 41-ELA08-10K0 1.00 0.08 0.2 11.0 • 0.10-5.00 0.02-0.15 SCIR 41-ERA08-10K0 1.00 0.08 0.2 11.0 • 0.10-5.00 0.02-0.15 • For cutting speed recommendations and user guide, see pages 475-492 (1) Cutting edge below center For tools, see pages: SCHR/L-41BF (412) HF Workpiece 4 41 SCIR/L-41-AD GAN x 2 8.5 Turning Inserts CW Tc CDX RE x 2 Dimensions Recommended Machining Data ap f turn f groove IC1008 Designation CW CWTOL(1) RE RETOL(2) HF(3) CDX Tc GAN (mm) (mm/rev) (mm/rev) SCIR/L 41-AD08-30K8 3.00 0.020 0.08 0.020 0.5 11.00 11.0 8.0 • 0.12-4.00 0.02-0.15 0.01-0.06 • For cutting speed recommendations and user guide, see pages 475-492 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) (3) Cutting edge below center For tools, see pages: SCHR/L-41BF (412) Workpiece HF 41 4 SCIR/L-41-AR/AL GAN 8.5 Turning Inserts with a Front Relief Angle Tc CDX Tc CW 8° Sharp corner Dimensions Recommended Machining Data ap f turn IC1008 Designation CW HF(1) CDX Tc GAN (mm) (mm/rev) SCIL 41-AL00-33K16 3.30 0.5 4.00 11.0 16.0 • 0.05-4.00 0.02-0.15 SCIR 41-AR00-33K16 3.30 0.5 4.00 11.0 16.0 • 0.05-4.00 0.02-0.15 • For cutting speed recommendations and user guide, see pages 475-492 (1) Cutting edge below center For tools, see pages: SCHR/L-41BF (412) 413
