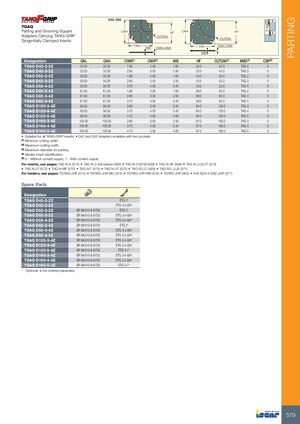

PARTING D42, D52 TGAQ Parting and Grooving Square OAH HF OAH HF Adapters Carrying TANG-GRIP CUTDIA CUTDIA Tangentially Clamped Inserts OAL OAL CWN-CWX WB CWN-CWX WB Designation OAL OAH CWN(1) CWX(2) WB HF CUTDIA(3) MIID(4) CSP(5) TGAQ D42-2-2Z 32.00 32.00 1.80 2.50 1.65 32.0 42.0 TAG 2 0 TGAQ D42-3-2Z 32.00 32.00 2.80 3.50 2.50 32.0 42.0 TAG 3 0 TGAQ D52-2-2Z 50.00 50.00 1.80 2.50 1.65 43.5 52.0 TAG 2 0 TGAQ D52-3-2Z 50.00 50.00 2.80 3.50 2.50 43.5 52.0 TAG 3 0 TGAQ D52-4-2Z 50.00 50.00 3.70 4.50 3.40 43.5 52.0 TAG 4 0 TGAQ D82-2-4Z 61.00 61.00 1.80 2.50 1.65 58.0 82.0 TAG 2 0 TGAQ D82-3-4Z 61.00 61.00 2.80 3.50 2.50 58.0 82.0 TAG 3 0 TGAQ D82-4-4Z 61.00 61.00 3.70 4.50 3.40 58.0 82.0 TAG 4 0 TGAQ D120-3-4Z 90.50 90.50 2.80 3.50 2.50 84.0 120.0 TAG 3 0 TGAQ D120-4-4Z 90.50 90.50 3.70 4.50 3.40 84.0 120.0 TAG 4 0 TGAQ D120-5-4Z 90.50 90.50 4.70 5.50 4.00 84.0 120.0 TAG 5 0 TGAQ D160-3-4Z 100.00 100.00 2.80 3.50 2.50 97.0 160.0 TAG 3 0 TGAQ D160-4-4Z 100.00 100.00 3.70 4.50 3.40 97.0 160.0 TAG 4 0 TGAQ D160-5-4Z 100.00 100.00 4.70 5.50 4.00 97.0 160.0 TAG 5 0 • Suitable for all TANG-GRIP inserts • D42 and D52 Adapters available with two pockets (1) Minimum cutting width (2) Maximum cutting width (3) Maximum diameter for parting (4) Master insert identification (5) 0 - Without coolant supply, 1 - With coolant supply For inserts, see pages: TAG N-A (573) • TAG N-C (full radius) (569) • TAG N-C/W/M (568) • TAG N-HF (568) • TAG N-J/JS/JT (570) • TAG N-LF (572) • TAG N-MF (570) • TAG N-T (573) • TAG N-UT (572) • TAG R/L-C (569) • TAG R/L-J/JS (571) For holders, see pages: TGTBQ-JHP (574) • TGTBQ-JHP-MC (575) • TGTBQ-JHP-RIB (576) • TGTBY-JHP (583) • V## SQ#-#-D82-JHP (577) Spare Parts Designation TGAQ D42-2-2Z ETG 2* TGAQ D42-3-2Z ETG 3-4-SH* TGAQ D52-2-2Z SR M4X10-8.8-T20 ETG 2* TGAQ D52-3-2Z SR M4X10-8.8-T20 ETG 3-4-SH* TGAQ D52-4-2Z SR M4X10-8.8-T20 ETG 3-4-SH* TGAQ D82-2-4Z SR M4X10-8.8-T20 ETG 2* TGAQ D82-3-4Z SR M4X10-8.8-T20 ETG 3-4-SH* TGAQ D82-4-4Z SR M4X10-8.8-T20 ETG 3-4-SH* TGAQ D120-3-4Z SR M4X10-8.8-T20 ETG 3-4-SH* TGAQ D120-4-4Z SR M4X10-8.8-T20 ETG 3-4-SH* TGAQ D120-5-4Z SR M4X10-8.8-T20 ETG 5-7* TGAQ D160-3-4Z SR M4X10-8.8-T20 ETG 3-4-SH* TGAQ D160-4-4Z SR M4X10-8.8-T20 ETG 3-4-SH* TGAQ D160-5-4Z SR M4X10-8.8-T20 ETG 5-7* * Optional, to be ordered separately 579
