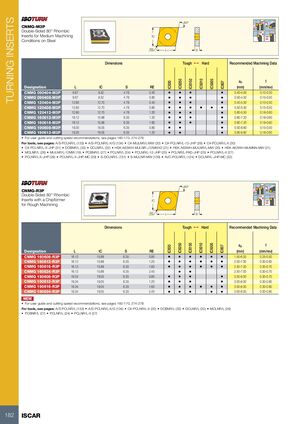

TURNING INSERTS 80° 95º CNMG-M3P 95º 95º Double-Sided 80° Rhombic 75° Inserts for Medium Machining IC 75º Conditions on Steel RE L S Dimensions Tough 1 Hard Recommended Machining Data ap f IC8250 IC8150 IC5010 IC5005 IC830 IC807 Designation L IC S RE (mm) (mm/rev) CNMG 090404-M3P 9.67 9.52 4.76 0.40 • • • • 0.40-4.00 0.10-0.30 CNMG 090408-M3P 9.67 9.52 4.76 0.80 • • • • 0.50-4.50 0.15-0.50 CNMG 120404-M3P 12.90 12.70 4.76 0.40 • • • • 0.40-5.50 0.10-0.30 CNMG 120408-M3P 12.90 12.70 4.76 0.80 • • • • • • 0.50-5.50 0.15-0.50 CNMG 120412-M3P 12.90 12.70 4.76 1.20 • • • • 0.80-5.50 0.18-0.60 CNMG 160612-M3P 16.12 15.88 6.35 1.20 • • • • 0.80-7.20 0.18-0.60 CNMG 160616-M3P 16.12 15.88 6.35 1.60 • • • • 0.80-7.20 0.18-0.60 CNMG 190608-M3P 19.30 19.05 6.35 0.80 • • • 0.50-8.60 0.15-0.50 CNMG 190612-M3P 19.30 19.05 6.35 1.20 • • • 0.80-8.60 0.18-0.60 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/S-PCLNR/L (133) • A/S-PCLNR/L-X/G (134) • C#-MULNR/L-MW (20) • C#-PCLNR/L-12-JHP (26) • C#-PCLNR/L-X (30) • C#-PCLNR/L-X-JHP (31) • DCBNR/L (33) • DCLNR/L (32) • HSK A63WH-MULNR-J12MWX2 (21) • HSK A63WH-MULNR/L-MW (20) • HSK A63WH-MUMNN-MW (21) • MCLNR/L (26) • MULNR/L-12MW (19) • PCBNR/L (27) • PCLNR/L (24) • PCLNR/L-12-JHP (25) • PCLNR/L-PAD-JHP (25) • PCLNR/L-X (27) • PCLNR/L-X-JHP (28) • PCLNR/L-X-JHP-MC (29) • S-DCLNR/L (131) • S-MULNR-MW (139) • AVC-PCLNR/L (124) • DCLNR/L-JHP-MC (32) 80° 95º CNMG-R3P 95º 95º Double-Sided 80° Rhombic 75° Inserts with a Chipformer IC 75º for Rough Machining RE L S Dimensions Tough 1 Hard Recommended Machining Data ap f IC8250 IC8150 IC5010 IC5005 IC830 IC807 Designation L IC S RE (mm) (mm/rev) CNMG 160608-R3P 16.12 15.88 6.35 0.80 • • • • • • 1.50-6.00 0.25-0.50 CNMG 160612-R3P 16.12 15.88 6.35 1.20 • • • • • • 2.00-7.00 0.30-0.60 CNMG 160616-R3P 16.12 15.88 6.35 1.60 • • • • • • 2.50-7.00 0.30-0.70 CNMG 160624-R3P 16.12 15.88 6.35 2.40 • • 2.50-7.00 0.30-0.70 CNMG 190608-R3P 19.34 19.05 6.35 0.80 • • • • 3.00-8.00 0.30-0.70 CNMG 190612-R3P 19.34 19.05 6.35 1.20 • • • • 3.00-8.00 0.30-0.80 CNMG 190616-R3P 19.34 19.05 6.35 1.60 • • • • • • 3.00-8.00 0.30-0.80 CNMG 190624-R3P 19.34 19.05 6.35 2.40 • • • • • 3.00-8.00 0.30-0.80 NEW • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/S-PCLNR/L (133) • A/S-PCLNR/L-X/G (134) • C#-PCLNR/L-X (30) • DCBNR/L (33) • DCLNR/L (32) • MCLNR/L (26) • PCBNR/L (27) • PCLNR/L (24) • PCLNR/L-X (27) 182 ISCAR
