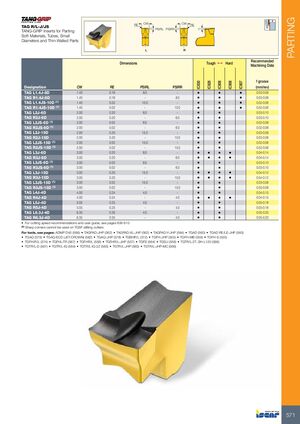

PARTING RE CW CW RE TAG R/L-J/JS PSIRL PSIRR 7° TANG-GRIP Inserts for Parting Soft Materials, Tubes, Small Diameters and Thin-Walled Parts L R Recommended Dimensions Tough 1 Hard Machining Data f groove IC830 IC928 IC808 IC908 IC807 Designation CW RE PSIRL PSIRR (mm/rev) TAG L1.4J-8D 1.40 0.16 8.0 - • • • 0.03-0.08 TAG R1.4J-8D 1.40 0.16 - 8.0 • • • 0.03-0.08 TAG L1.4JS-10D (1) 1.40 0.02 10.0 - • • • 0.02-0.06 TAG R1.4JS-10D (1) 1.40 0.02 - 10.0 • • • 0.02-0.06 TAG L2J-6D 2.00 0.20 6.0 - • • 0.03-0.10 TAG R2J-6D 2.00 0.20 - 6.0 • • 0.03-0.10 TAG L2JS-6D (1) 2.00 0.02 6.0 - • • 0.02-0.08 TAG R2JS-6D (1) 2.00 0.02 - 6.0 • • 0.02-0.08 TAG L2J-15D 2.00 0.20 15.0 - • • 0.03-0.08 TAG R2J-15D 2.00 0.20 - 15.0 • • 0.03-0.08 TAG L2JS-15D (1) 2.00 0.02 15.0 - • • 0.02-0.06 TAG R2JS-15D (1) 2.00 0.02 - 15.0 • • 0.02-0.06 TAG L3J-6D 3.00 0.20 6.0 - • • • • 0.04-0.14 TAG R3J-6D 3.00 0.20 - 6.0 • • • • 0.04-0.14 TAG L3JS-6D (1) 3.00 0.02 6.0 - • • 0.03-0.10 TAG R3JS-6D (1) 3.00 0.02 - 6.0 • • 0.03-0.10 TAG L3J-15D 3.00 0.20 15.0 - • • • • 0.04-0.12 TAG R3J-15D 3.00 0.20 - 15.0 • • • • 0.04-0.12 TAG L3JS-15D (1) 3.00 0.02 15.0 - • • 0.03-0.08 TAG R3JS-15D (1) 3.00 0.02 - 15.0 • • 0.03-0.08 TAG L4J-4D 4.00 0.24 4.0 - • • 0.04-0.15 TAG R4J-4D 4.00 0.24 - 4.0 • • • • 0.04-0.15 TAG L5J-4D 5.05 0.25 4.0 - • • 0.05-0.18 TAG R5J-4D 5.05 0.25 - 4.0 • • 0.05-0.18 TAG L6.3J-4D 6.35 0.35 4.0 - • • 0.05-0.20 TAG R6.3J-4D 6.35 0.35 - 4.0 • • 0.05-0.20 • For cutting speed recommendations and user guide, see pages 606-615 (1) Sharp corners cannot be used on TGSF slitting cutters For tools, see pages: ADMP D45 (586) • TAGPAD-JHP (562) • TAGPAD-XL-JHP (562) • TAGPAD-Y-JHP (584) • TGAD (560) • TGAD RE/LE-JHP (560) • TGAQ (579) • TGAQ-ECD (JET-CROWN) (582) • TGAQ-JHP (578) • TGBHR/L (372) • TGFH-JHP (555) • TGFH-MB (559) • TGFH-S (555) • TGFH/R/L (374) • TGFHL-TR (567) • TGFHR/L (556) • TGFHR/L-JHP (557) • TGFS (564) • TGSU (558) • TGTR/L-2T..SH-L120 (566) • TGTR/L-D (567) • TGTR/L-IQ (564) • TGTR/L-IQ-2Z (565) • TGTR/L-JHP (565) • TGTR/L-JHP-MC (566) 571
