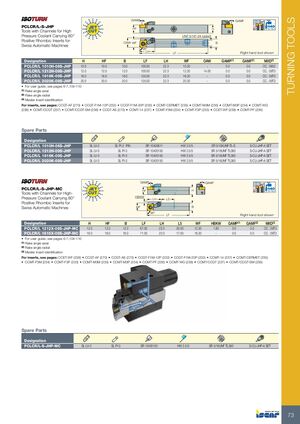

Токарные инструменты Iscar (часть 1) 2026 - страница 75

TURNING TOOLS GAMP GAMF 95º PCLCR/L-S-JHP HF H 95º Bar Max Tools with Channels for High Pressure Coolant Carrying 80° UNF 5/16”-24 typex3 Positive Rhombic Inserts for OAW WF B Swiss Automatic Machines 95° LH Right hand tool shown LF Designation H HF B LF LH WF OAW GAMP(1) GAMF(2) MIID(3) PCLCR/L 1010H-06S-JHP 10.0 10.0 10.0 100.00 22.3 10.20 - 0.0 0.0 CC.. 0602 PCLCR/L 1212H-09S-JHP 12.0 12.0 12.0 100.00 22.3 12.20 14.00 0.0 0.0 CC.. 09T3 PCLCR/L 1616K-09S-JHP 16.0 16.0 16.0 125.00 22.3 16.20 - 0.0 0.0 CC.. 09T3 PCLCR/L 2020K-09S-JHP 20.0 20.0 20.0 125.00 22.3 20.20 - 0.0 0.0 CC.. 09T3 • For user guide, see pages 6-7,104-110 (1) Rake angle axial (2) Rake angle radial (3) Master insert identification For inserts, see pages: CCGT-AF (270) • CCGT-F1M-12P (232) • CCGT-F1M-20P (233) • CCMT-CERMET (235) • CCMT-M3M (235) • CCMT-M3P (234) • CCMT-WG (238) • CCMT/CCGT (237) • CCMT/CCGT-SM (236) • CCGT-AS (270) • CCMT-14 (237) • CCMT-F3M (234) • CCMT-F3P (233) • CCET-WF (238) • CCMT-PF (236) Spare Parts Designation PCLCR/L 1010H-06S-JHP SL LV-2 SL PI-2 PIN SR 10400611 HW 2.0/5 SR 5/16XUNF-TL-S S-CU-JHP-A SET PCLCR/L 1212H-09S-JHP SL LV-3 SL PI-3 SR 10400150 HW 2.5/5 SR 5/16UNF TL360 S-CU-JHP-A SET PCLCR/L 1616K-09S-JHP SL LV-3 SL PI-3 SR 10400150 HW 2.5/5 SR 5/16UNF TL360 S-CU-JHP-A SET PCLCR/L 2020K-09S-JHP SL LV-3 SL PI-3 SR 10400150 HW 2.5/5 SR 5/16UNF TL360 S-CU-JHP-A SET GAMP GAMF 95º PCLCR/L-S-JHP-MC HF H 95º Bar Max Tools with Channels for High- Pressure Coolant Carrying 80° HBKW LH L5 Positive Rhombic Inserts for Swiss Automatic Machines WF B 95° LF Right hand tool shown Designation H HF B LF LH L5 WF HBKW GAMP(1) GAMF(2) MIID(3) PCLCR/L 1212X-09S-JHP-MC 12.0 12.0 12.0 67.00 23.0 20.00 12.20 1.80 0.0 0.0 CC.. 09T3 PCLCR/L 1616X-09S-JHP-MC 16.0 16.0 16.0 71.00 23.0 17.00 16.20 - 0.0 0.0 CC.. 09T3 • For user guide, see pages 6-7,104-110 (1) Rake angle axial (2) Rake angle radial (3) Master insert identification For inserts, see pages: CCET-WF (238) • CCGT-AF (270) • CCGT-AS (270) • CCGT-F1M-12P (232) • CCGT-F1M-20P (233) • CCMT-14 (237) • CCMT-CERMET (235) • CCMT-F3M (234) • CCMT-F3P (233) • CCMT-M3M (235) • CCMT-M3P (234) • CCMT-PF (236) • CCMT-WG (238) • CCMT/CCGT (237) • CCMT/CCGT-SM (236) Spare Parts Designation PCLCR/L-S-JHP-MC SL LV-3 SL PI-3 SR 10400150 HW 2.5/5 SR 5/16UNF TL360 S-CU-JHP-A SET 73
