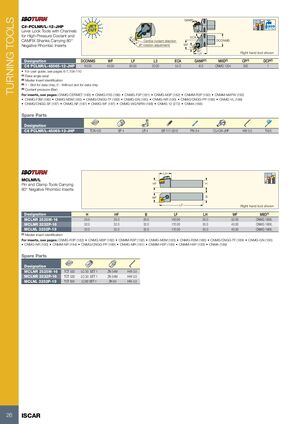

TURNING TOOLS GAMP 95º C#-PCLNR/L-12-JHP 95º Bar Max Lever Lock Tools with Channels for High-Pressure Coolant and 4° ECA CAMFIX Shanks Carrying 80° 4° Central coolant direction DCONMS Negative Rhombic Inserts (8° rotation adjustment) WF L3 95° LF Right hand tool shown Designation DCONMS WF LF L3 ECA GAMP(1) MIID(2) CP(4) DCP(3) C6 PCLNR/L-45065-12-JHP 63.00 45.00 65.00 20.00 54.0 -6.0 CNMG 1204 300 1 • For user guide, see pages 6-7,104-110 (1) Rake angle axial (2) Master insert identification (3) 1 - Slot for data chip, 0 - Without slot for data chip (4) Coolant pressure (Bar) For inserts, see pages: CNMG-CERMET (183) • CNMG-F3S (186) • CNMG-F3P (181) • CNMG-M3P (182) • CNMM-R3P (192) • CNMM-M4PW (192) • CNMG-F3M (185) • CNMG-M3M (185) • CNMG/CNGG-TF (189) • CNMG-GN (190) • CNMG-NR (190) • CNMG/CNGG-PP (189) • CNMG-VL (186) • CNMG/CNGG-SF (187) • CNMG-NF (187) • CNMG-WF (187) • CNMG-WG/NRW (188) • CNMS-12 (272) • CNMA (188) Spare Parts Designation C6 PCLNR/L-45065-12-JHP TCN 423 SP 4 LR 4 SR 117-2010 PN 3-4 CU-CW-JHP HW 3.0 T-8/5 LH 95º MCLNR/L 95º Pin and Clamp Tools Carrying HF H 80° Negative Rhombic Inserts WF B LF Right hand tool shown Designation H HF B LF LH WF MIID(1) MCLNR 2525M-16 25.0 25.0 25.0 150.00 30.0 32.00 CNMG 1606.. MCLNR 3232P-16 32.0 32.0 32.0 170.00 30.0 40.00 CNMG 1606.. MCLNL 3232P-19 32.0 32.0 32.0 170.00 35.0 40.00 CNMG 1906.. (1) Master insert identification For inserts, see pages: CNMG-R3P (182) • CNMG-M3P (182) • CNMM-R3P (192) • CNMG-M3M (185) • CNMG-R3M (186) • CNMG/CNGG-TF (189) • CNMG-GN (190) • CNMG-NR (190) • CNMM-NR (194) • CNMG/CNGG-PP (189) • CNMG-MR (191) • CNMM-H3P (193) • CNMM-H4P (193) • CNMA (188) Spare Parts Designation MCLNR 2525M-16 TCT 533 LC 30 SET 1 ZN 54M HW 3.0 MCLNR 3232P-16 TCT 533 LC 30 SET 1 ZN 54M HW 3.0 MCLNL 3232P-19 TCT 634 LC80 SET-1 ZN 64 HW 4.0 26 ISCAR
