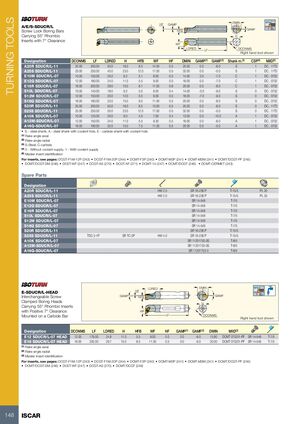

Токарные инструменты Iscar (часть 1) 2026 - страница 150

TURNING TOOLS DMIN 93º-95º HF GAMP A/E/S-SDUCR/L 30º GAMF MAX Screw Lock Boring Bars HFB Carrying 55° Rhombic H Inserts with 7° Clearance WF LDRED DCONMS LF Right hand tool shown Designation DCONMS LF LDRED H HFB WF HF DMIN GAMP(1) GAMF(2) Shank m.(3) CSP(4) MIID(5) A20R SDUCR/L-11 20.00 200.00 50.0 18.0 8.5 14.50 0.5 25.00 0.0 -6.0 S 1 DC.. 11T3 A25S SDUCR/L-11 25.00 250.00 45.0 23.0 12.0 17.00 0.5 32.00 0.0 -5.0 S 1 DC.. 11T3 E10M SDUCR/L-07 10.00 150.00 25.0 9.2 5.1 8.00 0.5 14.00 3.0 -7.0 C 1 DC.. 0702 E12Q SDUCR/L-07 12.00 180.00 24.0 11.0 5.5 9.00 0.0 16.00 0.0 -7.0 C 1 DC.. 0702 E16R SDUCR/L-07 16.00 200.00 29.0 15.0 8.1 11.00 0.6 20.00 0.0 -8.0 C 1 DC.. 0702 S10L SDUCR/L-07 10.00 140.00 18.0 9.2 5.0 8.00 0.4 14.00 -3.0 -9.0 S 0 DC.. 0702 S12M SDUCR/L-07 12.00 150.00 20.0 12.0 5.5 9.00 0.5 16.00 -7.0 -9.0 S 0 DC.. 0702 S16Q SDUCR/L-07 16.00 180.00 25.0 15.0 8.0 11.00 0.5 20.00 0.0 -8.0 S 0 DC.. 0702 S20R SDUCR/L-11 20.00 200.00 50.0 18.0 8.5 13.00 0.5 25.00 0.0 -6.0 S 0 DC.. 11T3 S25S SDUCR/L-11 25.00 250.00 55.0 23.0 12.0 17.00 0.5 32.00 0.0 -5.0 S 0 DC.. 11T3 A10K SDUCR/L-07 10.00 125.00 20.0 9.0 4.5 7.00 0.4 13.00 0.0 -10.0 A 1 DC.. 0702 A12M-SDUCR/L-07 12.00 150.00 24.0 11.0 5.5 9.30 0.5 16.00 0.0 -6.0 A 1 DC.. 0702 A16Q-SDUCR/L-07 16.00 180.00 32.0 15.0 7.5 11.30 0.5 20.00 0.0 -5.0 A 1 DC.. 0702 • S - steel shank, A - steel shank with coolant hole, E - carbide shank with coolant hole (1) Rake angle axial (2) Rake angle radial (3) S-Steel, C-carbide (4) 0 - Without coolant supply, 1 - With coolant supply (5) Master insert identification For inserts, see pages: DCGT-F1M-12P (243) • DCGT-F1M-20P (244) • DCMT-F3P (240) • DCMT-M3P (241) • DCMT-M3M (241) • DCMT/DCGT-PF (245) • DCMT/DCGT-SM (246) • DCET-WF (247) • DCGT-AS (270) • DCGT-AF (271) • DCMT-14 (247) • DCMT/DCGT (246) • DCMT-CERMET (243) Spare Parts Designation A20R SDUCR/L-11 HW 2.0 SR 16-236 P T-15/5 PL 20 A25S SDUCR/L-11 HW 2.0 SR 16-236 P T-15/5 PL 25 E10M SDUCR/L-07 SR 14-548 T-7/5 E12Q SDUCR/L-07 SR 14-548 T-7/5 E16R SDUCR/L-07 SR 14-548 T-7/5 S10L SDUCR/L-07 SR 14-548 T-7/5 S12M SDUCR/L-07 SR 14-548 T-7/5 S16Q SDUCR/L-07 SR 14-548 T-7/5 S20R SDUCR/L-11 SR 16-236 P T-15/5 S25S SDUCR/L-11 TDC 3-1P SR TC-3P HW 4.0 SR 16-236 P T-15/5 A10K SDUCR/L-07 SR 11201753-3S T-8/5 A12M-SDUCR/L-07 SR 11201753-3S T-8/5 A16Q-SDUCR/L-07 SR 11201753-3 T-8/5 LDRED DMIN 93º-95º HF E-SDUCR/L-HEAD 30º GAMF MAX Interchangeable Screw GAMP HFB Clamped Boring Heads H Carrying 55° Rhombic Inserts with Positive 7° Clearance WF Mounted on a Carbide Bar LF DCONMS Right hand tool shown Designation DCONMS LF LDRED H HFB WF HF GAMP(1) GAMF(2) DMIN MIID(3) E12 SDUCR/L-07 HEAD 12.00 179.00 24.8 11.0 5.5 9.00 0.0 0.0 -9.0 15.80 DCMT 070201-PF SR 14-548 T-7/5 E16 SDUCR/L-07 HEAD 16.00 200.00 29.7 15.0 8.0 11.00 0.5 0.0 -9.0 20.00 DCMT 070201-PF SR 14-548 T-7/5 (1) Rake angle axial (2) Rake angle radial (3) Master insert identification For inserts, see pages: DCGT-F1M-12P (243) • DCGT-F1M-20P (244) • DCMT-F3P (240) • DCMT-M3P (241) • DCMT-M3M (241) • DCMT/DCGT-PF (245) • DCMT/DCGT-SM (246) • DCET-WF (247) • DCGT-AS (270) • DCMT/DCGT (246) 148 ISCAR
