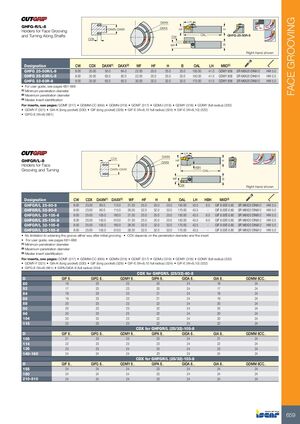

FACE GROOVING DAXN LH GHFG-R/L-8 DAXX DAXN-DAXX HF H Holders for Face Grooving and Turning Along Shafts OAL GHFG-25-50R-8 CW CDX WF B Right-hand shown Designation CW CDX DAXN(1) DAXX(2) WF HF H B OAL LH MIID(3) GHFG 25-50R/L-8 8.00 25.00 50.0 64.0 22.00 25.0 25.0 25.0 150.00 41.0 GDMY 808 SR M6X20 DIN912 HW 5.0 GHFG 25-63R/L-8 8.00 25.00 63.0 82.0 22.00 25.0 25.0 25.0 150.00 41.0 GDMY 808 SR M6X20 DIN912 HW 5.0 GHFG 32-63R-8 8.00 25.00 63.0 82.0 30.00 32.0 32.0 32.0 170.00 41.0 GDMY 808 SR M6X20 DIN912 HW 5.0 • For user guide, see pages 681-688 (1) Minimum penetration diameter (2) Maximum penetration diameter (3) Master insert identification For inserts, see pages: GDMF (317) • GDMM-CC (664) • GDMN (319) • GDMT (317) • GDMU (319) • GDMY (318) • GDMY (full radius) (320) • GDMY-F (321) • GIA-K (long pocket) (330) • GIF (long pocket) (328) • GIF-E (W=8,10 full radius) (324) • GIF-E (W=8,10) (322) • GIFG-E (W=8) (661) LH DAXN CDX GHFGR/L-8 DAXX HF H Holders for Face HBH Grooving and Turning DAXN-DAXX OAL WF B CW Right-hand shown Designation CW CDX DAXN(1) DAXX(2) WF HF H B OAL LH HBH MIID(3) GHFGR/L 25-80-8 8.00 23.00 80.0 115.0 21.30 25.0 25.0 25.0 150.00 43.5 6.0 GIF 8.00E-0.80 SR M6X20 DIN912 HW 5.0 GHFGR/L 32-80-8 8.00 23.00 80.0 115.0 28.30 32.0 32.0 32.0 170.00 43.5 - GIF 8.00E-0.80 SR M6X20 DIN912 HW 5.0 GHFGR/L 25-105-8 8.00 25.00 105.0 160.0 21.30 25.0 25.0 25.0 150.00 43.5 6.0 GIF 8.00E-0.80 SR M6X20 DIN912 HW 5.0 GHFGR/L 25-155-8 8.00 25.00 155.0 510.0 21.30 25.0 25.0 25.0 150.00 43.5 6.0 GIF 8.00E-0.80 SR M6X20 DIN912 HW 5.0 GHFGR/L 32-105-8 8.00 25.00 105.0 160.0 28.30 32.0 32.0 32.0 170.00 43.5 - GIF 8.00E-0.80 SR M6X20 DIN912 HW 5.0 GHFGR/L 32-155-8 8.00 25.00 155.0 510.0 28.30 32.0 32.0 32.0 170.00 43.5 - GIF 8.00E-0.80 SR M6X20 DIN912 HW 5.0 • No limitation to widening the groove either way after initial grooving • CDX depends on the penetration diameter and the insert • For user guide, see pages 681-688 (1) Minimum penetration diameter (2) Maximum penetration diameter (3) Master insert identification For inserts, see pages: GDMF (317) • GDMM-CC (664) • GDMN (319) • GDMT (317) • GDMU (319) • GDMY (318) • GDMY (full radius) (320) • GDMY-F (321) • GIA-K (long pocket) (330) • GIF (long pocket) (328) • GIF-E (W=8,10 full radius) (324) • GIF-E (W=8,10) (322) • GIFG-E (W=8) (661) • GIPA/GIDA 8 (full radius) (334) CDX for GHFGR/L (25/32)-80-8 D GIF 8… GIFG 8… GDMY 8… GIPA 8… GIDA 8… GIA 8… GDMM 8CC… 80 16 23 23 20 24 16 24 82 17 23 23 20 24 17 24 84 18 23 23 21 24 18 24 86 19 23 23 21 24 19 24 88 20 23 23 22 24 20 24 90 20 23 23 22 24 20 24 96 20 23 23 22 24 20 24 104 20 23 23 22 24 20 24 115 22 23 23 22 24 22 24 CDX for GHFGR/L (25/32)-105-8 D GIF 8… GIFG 8… GDMY 8… GIPA 8… GIDA 8… GIA 8… GDMM 8CC… 105 21 23 23 23 24 21 24 114 22 23 23 23 24 22 24 126 23 23 24 23 24 23 24 140-160 24 24 24 23 24 24 24 CDX for GHFGR/L (25/32)-155-8 D GIF 8… GIFG 8… GDMY 8… GIPA 8… GIDA 8… GIA 8… GDMM 8CC… 155 24 24 24 23 24 24 24 180 24 24 24 23 24 24 24 210-510 24 24 24 23 24 24 24 659
