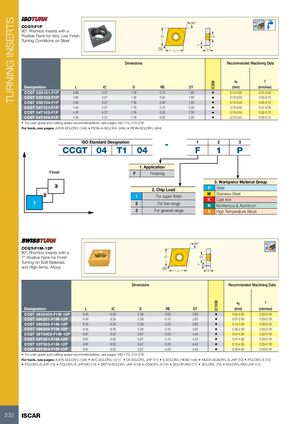

TURNING INSERTS 80° CCGT-F1P 95º 80° Rhombic Inserts with a Positive Flank for Very Low Finish IC D1 Turning Conditions on Steel 7° RE L S Dimensions Recommended Machining Data ap f IC908 Designation L IC S RE D1 (mm) (mm/rev) CCGT 03X101-F1P 3.60 3.57 1.39 0.10 1.90 • 0.10-0.50 0.01-0.05 CCGT 03X102-F1P 3.60 3.57 1.39 0.20 1.90 • 0.10-0.50 0.02-0.10 CCGT 03X104-F1P 3.60 3.57 1.39 0.40 1.90 • 0.10-0.50 0.05-0.15 CCGT 04T101-F1P 4.40 4.37 1.79 0.10 2.30 • 0.10-0.50 0.01-0.05 CCGT 04T102-F1P 4.40 4.37 1.79 0.20 2.30 • 0.10-0.50 0.02-0.10 CCGT 04T104-F1P 4.40 4.37 1.79 0.40 2.30 • 0.10-0.50 0.05-0.15 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/E/S-SCLCR/L (146) • PICIN-A-SCLCR/L (464) • PICIN-SCLCR/L (464) ISO Standard Designation - 1 2 3 CCGT 04 T1 04 F 1 P 1. Application Finish F Finishing 3. Workpiece Material Group 3 P Steel 2. Chip Load 2 M Stainless Steel 1 For super finish K Cast Iron 1 2 For low range N Nonferrous & Aluminum 3 For general range S High Temperature Alloys 80° CCGT-F1M-12P 95º 80° Rhombic Inserts with a 7° Positive Flank for Finish IC D1 Turning on Soft Materials 7° and High-Temp. Alloys. RE L S Dimensions Recommended Machining Data ap f IC1008 Designation L IC S RE D1 (mm) (mm/rev) CCGT 0602005-F1M-12P 6.45 6.35 2.38 0.05 2.80 • 0.04-2.50 0.03-0.18 CCGT 060201-F1M-12P 6.45 6.35 2.38 0.10 2.80 • 0.07-2.50 0.03-0.18 CCGT 060202-F1M-12P 6.45 6.35 2.38 0.20 2.80 • 0.15-2.50 0.03-0.18 CCGT 060204-F1M-12P 6.45 6.35 2.38 0.40 2.80 • 0.30-2.50 0.03-0.18 CCGT 09T3005-F1M-12P 9.67 9.52 3.97 0.05 4.40 • 0.04-4.50 0.03-0.18 CCGT 09T301-F1M-12P 9.67 9.52 3.97 0.10 4.40 • 0.07-4.50 0.03-0.18 CCGT 09T302-F1M-12P 9.67 9.52 3.97 0.20 4.40 • 0.15-4.50 0.03-0.18 CCGT 09T304-F1M-12P 9.67 9.52 3.97 0.40 4.40 • 0.30-4.50 0.03-0.18 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/E/S-SCLCR/L (146) • AVC-SCLCR/L (121) • C#-SCLCR/L-JHP (71) • E-SCLCR/L-HEAD (145) • NQCH-SCACR/L-S-JHP (72) • PCLCR/L-S (72) • PCLCR/L-S-JHP (73) • PCLCR/L-S-JHP-MC (73) • SBTT#-SCLCR/L-JHP (418) • SCACR/L-S (72) • SCLCR-PAD (71) • SCLCR/L (70) • SCLCR/L-PAD-JHP (71) 232 ISCAR
