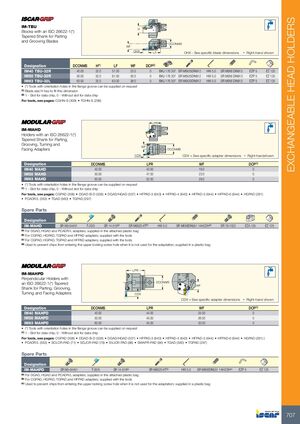

EXCHANGEABLE HEAD HOLDERS IM-TBU H Blocks with an ISO 26622-1(*) Tapered Shank for Parting and Grooving Blades DCONMS WF OHX LF OHX - See specific blade dimensions • Right-hand shown Designation DCONMS H(1) LF WF DCP(2) IM40 TBU-32R 40.00 32.0 51.00 23.0 0 BKU 176 307 SR M6X25DIN912 HW 5.0 SR M6X6 DIN913 EZP 5 EZ 125 IM50 TBU-32R 50.00 32.0 61.00 30.0 0 BKU 176 307 SR M6X25DIN912 HW 5.0 SR M6X6 DIN913 EZP 5 EZ 125 IM63 TBU-32L 63.00 32.0 63.00 38.0 0 BKU 176 307 SR M6X25DIN912 HW 5.0 SR M6X6 DIN913 EZP 5 EZ 125 • (*) Tools with orientation holes in the flange groove can be supplied on request (1) Blade size H has to fit this dimension (2) 1 - Slot for data chip, 0 - Without slot for data chip For tools, see pages: CGHN-S (309) • TGHN-S (298) LPR IM-MAHD Holders with an ISO 26622-1(*) Tapered Shank for Parting, Grooving, Turning and WF Facing Adapters DCONMS CDX CDX = See specific adapter dimensions • Right-handshown Designation DCONMS LPR WF DCP(1) IM40 MAHD 40.00 43.00 18.0 0 IM50 MAHD 50.00 47.00 23.0 0 IM63 MAHD 63.00 52.00 29.0 0 • (*) Tools with orientation holes in the flange groove can be supplied on request (1) 1 - Slot for data chip, 0 - Without slot for data chip For tools, see pages: CGPAD (308) • DGAD-B-D (538) • DGAD/HGAD (537) • HFPAD-3 (643) • HFPAD-4 (643) • HFPAD-5 (644) • HFPAD-6 (644) • HGPAD (291) • PCADR/L (353) • TGAD (560) • TGPAD (297) Spare Parts Designation IM-MAHD SR M5-04451 T-20/5 SR 14-519(a) SR M6X20-XT(b) HW 5.0 SR M6X6DIN551 14H/22H(d) SR 76-1022 EZA 125 EZ 125 (a) For DGAD, HGAD and PCADR/L adapters; supplied in the attached plastic bag (b) For CGPAD, HGPAD, TGPAD and HFPAD adapters; supplied with the tools (c) For CGPAD, HGPAD, TGPAD and HFPAD adapters; supplied with the tools (d) Used to prevent chips from entering the upper locking screw hole when it is not used for the adaptation; supplied in a plastic bag LPR IM-MAHPD Perpendicular Holders with an ISO 26622-1(*) Tapered DCONMS WF Shank for Parting, Grooving, Turning and Facing Adapters CDX CDX = See specific adapter dimensions • Right-hand shown Designation DCONMS LPR WF DCP(1) IM40 MAHPD 40.00 44.00 25.00 0 IM50 MAHPD 50.00 45.00 26.00 0 IM63 MAHPD 63.00 45.00 33.00 0 • (*) Tools with orientation holes in the flange groove can be supplied on request (1) 1 - Slot for data chip, 0 - Without slot for data chip For tools, see pages: CGPAD (308) • DGAD-B-D (538) • DGAD/HGAD (537) • HFPAD-3 (643) • HFPAD-4 (643) • HFPAD-5 (644) • HFPAD-6 (644) • HGPAD (291) | • PCADR/L (353) • SCLCR-PAD (71) • SDJCR-PAD (78) • SVJCR-PAD (88) • SWAPR-PAD (96) • TGAD (560) • TGPAD (297) Spare Parts Designation IM-MAHPD SR M5-04451 T-20/5 SR 14-519(a) SR M6X20-XT(b) HW 5.0 SR M6X6DIN551 14H/22H(c) EZP 5 EZ 125 (a) For DGAD, HGAD and PCADR/L adapters; supplied in the attached plastic bag (b) For CGPAD, HGPAD, TGPAD and HFPAD adapters; supplied with the tools (c) Used to prevent chips from entering the upper locking screw hole when it is not used for the adaptation; supplied in a plastic bag 707
