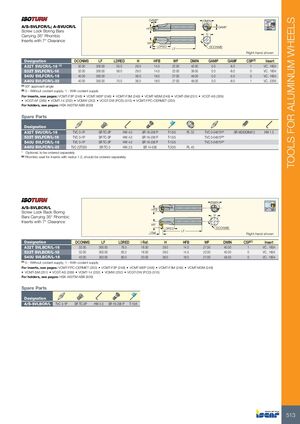

TOOLS FOR ALUMINUM WHEELS GAMP DMIN 95º A/S-SVLFCR/L; A-SVUCR/L HFB GAMF 48° MAX Screw Lock Boring Bars H Carrying 35° Rhombic Inserts with 7° Clearance WF LDRED DCONMS LF Right-hand shown Designation DCONMS LF LDRED H HFB WF DMIN GAMP GAMF CSP(2) Insert A32T SVUCR/L-16 (1) 32.00 300.00 50.0 29.0 14.5 22.00 40.00 0.0 -8.0 1 VC.. 1604 S32T SVLFCR/L-16 32.00 300.00 56.0 29.0 14.5 22.00 39.50 0.0 -8.0 0 VC.. 1604 S40U SVLFCR/L-16 40.00 350.00 - 36.0 18.0 27.00 49.00 0.0 -5.0 0 VC.. 1604 A40U SVLFCR/L-22 40.00 350.00 70.0 36.0 18.0 27.00 48.00 0.0 -8.0 1 VC.. 2205 (1) 93° approach angle (2) 0 - Without coolant supply, 1 - With coolant supply For inserts, see pages: VCMT-F3P (248) • VCMT-M3P (248) • VCMT-F3M (249) • VCMT-M3M (249) • VCMT-SM (251) • VCGT-AS (269) • VCGT-AF (269) • VCMT-14 (252) • VCMW (252) • VCGT-DW (PCD) (515) • VCMT-FPC-CERMET (250) For holders, see pages: HSK A63TM ABB (839) Spare Parts Designation A32T SVUCR/L-16 TVC 3-1P SR TC-3P HW 4.0 SR 16-236 P T-15/5 PL 32 TVC 3-04675(a)* SR M3X3DIN913 HW 1.5 S32T SVLFCR/L-16 TVC 3-1P SR TC-3P HW 4.0 SR 16-236 P T-15/5 TVC 3-04675(a)* S40U SVLFCR/L-16 TVC 3-1P SR TC-3P HW 4.0 SR 16-236 P T-15/5 TVC 3-04675(a)* A40U SVLFCR/L-22 TVC 22T330 SR TC-3 HW 2.5 SR 14-536 T-20/5 PL 40 * Optional, to be ordered separately (a) Rhombic seat for inserts with radius 1.2, should be ordered separately DMIN A/S-SVLBCR/L HFB 95º Screw Lock Back Boring H Bars Carrying 35° Rhombic Inserts with 7° Clearance WF LDRED DCONMS LF l Ref. Right-hand shown Designation DCONMS LF LDRED l Ref. H HFB WF DMIN CSP(1) Insert A32T SVLBCR/L-16 32.00 300.00 76.5 18.50 29.0 14.5 27.50 40.00 1 VC.. 1604 S32T SVLBCR/L-16 32.00 300.00 63.2 18.50 29.0 14.5 22.00 40.00 0 VC.. 1604 S40U SVLBCR/L-16 40.00 350.00 60.0 20.00 36.0 18.0 27.00 49.50 0 VC.. 1604 (1) 0 - Without coolant supply, 1 - With coolant supply For inserts, see pages: VCMT-FPC-CERMET (250) • VCMT-F3P (248) • VCMT-M3P (248) • VCMT-F3M (249) • VCMT-M3M (249) • VCMT-SM (251) • VCGT-AS (269) • VCMT-14 (252) • VCMW (252) • VCGT-DW (PCD) (515) For holders, see pages: HSK A63TM ABB (839) Spare Parts Designation A/S-SVLBCR/L TVC 3-1P SR TC-3P HW 4.0 SR 16-236 P T-15/5 513
