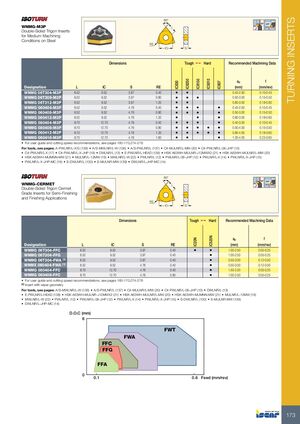

TURNING INSERTS 80° 95° 95º WNMG-M3P L 95° Double-Sided Trigon Inserts for Medium Machining Conditions on Steel RE IC S Dimensions Tough 1 Hard Recommended Machining Data ap f IC8250 IC8150 IC5010 IC830 IC807 Designation L IC S RE (mm) (mm/rev) WNMG 06T304-M3P 6.52 9.52 3.97 0.40 • • 0.45-2.50 0.10-0.45 WNMG 06T308-M3P 6.52 9.52 3.97 0.80 • • • 0.50-3.00 0.15-0.50 WNMG 06T312-M3P 6.52 9.52 3.97 1.20 • • 0.80-3.00 0.18-0.60 WNMG 060404-M3P 6.52 9.52 4.76 0.40 • • • • 0.45-2.50 0.10-0.45 WNMG 060408-M3P 6.52 9.52 4.76 0.80 • • • • 0.50-3.00 0.15-0.50 WNMG 060412-M3P 6.52 9.52 4.76 1.20 • • • 0.80-3.00 0.18-0.60 WNMG 080404-M3P 8.70 12.70 4.76 0.40 • • • • 0.40-3.50 0.10-0.45 WNMG 080408-M3P 8.70 12.70 4.76 0.80 • • • • • 0.50-4.00 0.15-0.50 WNMG 080412-M3P 8.70 12.70 4.76 1.20 • • • • • 0.80-4.00 0.18-0.60 WNMG 080416-M3P 8.70 12.70 4.76 1.60 • • • 1.00-4.00 0.23-0.65 • For user guide and cutting speed recommendations, see pages 160-170,274-278 For tools, see pages: A-PWLNR/L-X/G (138) • A/S-MWLNR/L-W (136) • A/S-PWLNR/L (137) • C#-MULNR/L-MW (20) • C#-PWLNR/L-08-JHP (13) • C#-PWLNR/L-X (17) • C#-PWLNR/L-X-JHP (18) • DWLNR/L (13) • E-PWLNR/L-HEAD (138) • HSK A63WH-MULNR-J12MWX2 (21) • HSK A63WH-MULNR/L-MW (20) • HSK A63WH-MUMNN-MW (21) • MULNR/L-12MW (19) • MWLNR/L-W (22) • PWLNR/L (12) • PWLNR/L-08-JHP (12) • PWLNR/L-X (14) • PWLNR/L-X-JHP (15) • PWLNR/L-X-JHP-MC (16) • S-DWLNR/L (130) • S-MULNR-MW (139) • DWLNR/L-JHP-MC (14) 80° 95° 95º WNMG-CERMET L 95° Double-Sided Trigon Cermet Grade Inserts for Semi-Finishing and Finishing Applications RE IC S Dimensions Tough 1 Hard Recommended Machining Data IC520N ap f IC20N Designation L IC S RE (mm) (mm/rev) WNMG 06T304-FFC 6.52 9.52 3.97 0.40 • • 1.00-2.50 0.05-0.25 WNMG 06T304-FFG 6.52 9.52 3.97 0.40 • 1.00-2.50 0.05-0.25 WNMG 06T304-FWA (1) 6.52 9.52 3.97 0.40 • 0.50-3.00 0.12-0.50 WNMX 060404-FWA (1) 6.52 9.52 4.76 0.40 • 0.50-3.00 0.12-0.50 WNMG 080404-FFC 8.70 12.70 4.76 0.40 • 1.50-2.50 0.05-0.25 WNMG 080408-FFC 8.70 12.70 4.76 0.80 • 1.00-2.50 0.05-0.25 • For user guide and cutting speed recommendations, see pages 160-170,274-278 (1) Insert with wiper geometry For tools, see pages: A/S-MWLNR/L-W (136) • A/S-PWLNR/L (137) • C#-MULNR/L-MW (20) • C#-PWLNR/L-08-JHP (13) • DWLNR/L (13) • E-PWLNR/L-HEAD (138) • HSK A63WH-MULNR-J12MWX2 (21) • HSK A63WH-MULNR/L-MW (20) • HSK A63WH-MUMNN-MW (21) • MULNR/L-12MW (19) • MWLNR/L-W (22) • PWLNR/L (12) • PWLNR/L-08-JHP (12) • PWLNR/L-X (14) • PWLNR/L-X-JHP (15) • S-DWLNR/L (130) • S-MULNR-MW (139) • DWLNR/L-JHP-MC (14) D.O.C (mm) 6 FWT FWA FFC FFG FFA 0 0.1 0.6 Feed (mm/rev) 173
