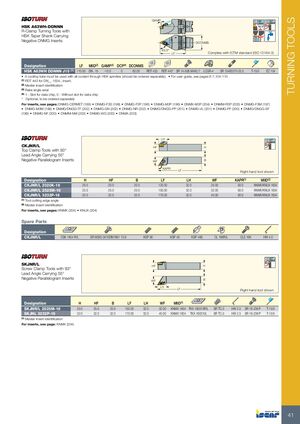

TURNING TOOLS GAMP 60° 27° MAX MAX HSK A63WH-DDNNN 62.5º 93° R-Clamp Turning Tools with HSK Taper Shank Carrying Negative DNMG Inserts DCONMS 62.5° LF Complies with ICTM standard (ISO 12164-3) Designation LF MIID(2) GAMP(3) DCP(4) DCONMS HSK A63WH DDNNN J15 (1) 110.00 DN.. 15 -10.0 0 63.00 RDT 433 RDT 443* SR 14-506 M4X0.7 LCGR-4 SR 10400270-25.5 T-15/5 EZ 104 • A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). • For user guide, see pages 6-7,104-110 (1) RDT 443 for DN__ 1504.. insert. (2) Master insert identification (3) Rake angle axial (4) 1 - Slot for data chip, 0 - Without slot for data chip * Optional, to be ordered separately For inserts, see pages: DNMG-CERMET (199) • DNMG-F3S (198) • DNMG-F3P (196) • DNMG-M3P (196) • DNMX-M3P (204) • DNMM-R3P (203) • DNMG-F3M (197) • DNMG-M3M (198) • DNMG/DNGG-TF (202) • DNMG-GN (202) • DNMG-NR (202) • DNMG/DNGG-PP (201) • DNMG-VL (201) • DNMG-PF (200) • DNMG/DNGG-SF (199) • DNMG-NF (200) • DNMM-NM (203) • DNMG-WG (200) • DNMA (203) LH 27° MAX CKJNR/L HF H 93° Top Clamp Tools with 93° Lead Angle Carrying 55° Negative Parallelogram Inserts WF B KAPR LF Right hand tool shown Designation H HF B LF LH WF KAPR(1) MIID(2) CKJNR/L 2020K-16 20.0 20.0 20.0 125.00 32.0 25.00 93.0 KNMX/KNUX 1604 CKJNR/L 2525M-16 25.0 25.0 25.0 150.00 32.0 32.00 93.0 KNMX/KNUX 1604 CKJNR/L 3232P-16 32.0 32.0 32.0 170.00 32.0 40.00 93.0 KNMX/KNUX 1604 (1) Tool cutting edge angle (2) Master insert identification For inserts, see pages: KNMX (204) • KNUX (204) Spare Parts Designation CKJNR/L CSK 1604 R/L SR M3X0.5X10DIN7991 10.9 KSP 90 KSP 48 KSP 48S CL 16KR/L CLS 16K HW 4.0 27° MAX SKJNR/L HF H 93° Screw Clamp Tools with 93° Lead Angle Carrying 55° Negative Parallelogram Inserts B WF LH LF Right hand tool shown Designation H HF B LF LH WF MIID(1) SKJNR/L 2525M-16 25.0 25.0 25.0 150.00 32.0 32.00 KNMX 1604 TKX 160310R/L SR TC-3 HW 2.5 SR 16-236 P T-15/5 SKJNL 3232P-16 32.0 32.0 32.0 170.00 32.0 40.00 KNMX 1604 TKX 160310L SR TC-3 HW 2.5 SR 16-236 P T-15/5 (1) Master insert identification For inserts, see page: KNMX (204) 41
