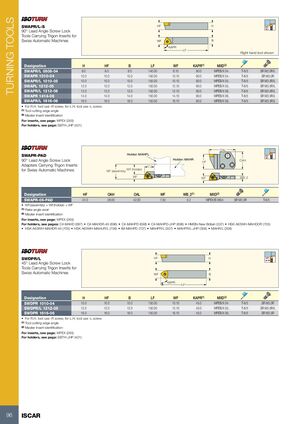

TURNING TOOLS SWAPR/L-S HF H 90° 90° Lead Angle Screw Lock Tools Carrying Trigon Inserts for Swiss Automatic Machines WF B KAPR LF Right hand tool shown Designation H HF B LF WF KAPR(1) MIID(2) SWAPR/L 0808-04 8.0 8.0 8.0 140.00 8.10 90.0 WPEB/X 04.. T-8/5 SR M3.0R/L SWAPR 1010-04 10.0 10.0 10.0 150.00 10.10 90.0 WPEB/X 04.. T-8/5 SR M3.0R SWAPR/L 1010-05 10.0 10.0 10.0 150.00 10.10 90.0 WPEB/X 05.. T-8/5 SR M3.5R/L SWAPL 1212-05 12.0 12.0 12.0 150.00 12.10 90.0 WPEB/X 05.. T-8/5 SR M3.5R/L SWAPR/L 1212-06 12.0 12.0 12.0 150.00 12.10 90.0 WPEB/X 06.. T-8/5 SR M3.5R/L SWAPR 1414-06 14.0 14.0 14.0 150.00 14.10 90.0 WPEB/X 06.. T-8/5 SR M3.5R/L SWAPR/L 1616-06 16.0 16.0 16.0 150.00 16.10 90.0 WPEB/X 06.. T-8/5 SR M3.5R/L • For R.H. tool use -R screw, for L.H. tool use -L screw. (1) Tool cutting edge angle (2) Master insert identification For inserts, see page: WPEX (265) For holders, see page: SBTH-JHP (421) OAL SWAPR-PAD Holder: MAHPL 90° 90° Lead Angle Screw Lock Holder: MAHR OAH HF Adapters Carrying Trigon Inserts 17.2 for Swiss Automatic Machines WF (holder) WF (assembly) WF WF WB_2 Designation HF OAH OAL WF WB_2(1) MIID(2) SWAPR-06-PAD 24.0 28.00 42.00 7.50 5.2 WPEX/B 0604 SR M3.5R T-8/5 • WF(assembly) = WF(holder) + WF (1) Rake angle axial (2) Master insert identification For inserts, see page: WPEX (265) For holders, see pages: C#-MAHD (697) • C#-MAHDR-45 (696) • C#-MAHPD (698) • C#-MAHPD-JHP (698) • HMSN-New Britain (537) • HSK A63WH-MAHDOR (705) • HSK A63WH-MAHDR-45 (705) • HSK A63WH-MAHUR/L (706) • IM-MAHPD (707) • MAHPR/L (307) • MAHPR/L-JHP (308) • MAHR/L (306) SWDPR/L HF H 45° 45° Lead Angle Screw Lock Tools Carrying Trigon Inserts for Swiss Automatic Machines WF B KAPR LF Designation H HF B LF WF KAPR(1) MIID(2) SWDPR 1010-04 10.0 10.0 10.0 150.00 10.10 45.0 WPEB/X 04.. T-8/5 SR M3.0R SWDPR/L 1212-05 12.0 12.0 12.0 150.00 12.10 45.0 WPEB/X 05.. T-8/5 SR M3.5R/L SWDPR 1616-06 16.0 16.0 16.0 150.00 16.10 45.0 WPEB/X 06.. T-8/5 SR M3.5R • For R.H. tool use -R screw, for L.H. tool use -L screw (1) Tool cutting edge angle (2) Master insert identification For inserts, see page: WPEX (265) For holders, see page: SBTH-JHP (421) 96 ISCAR
