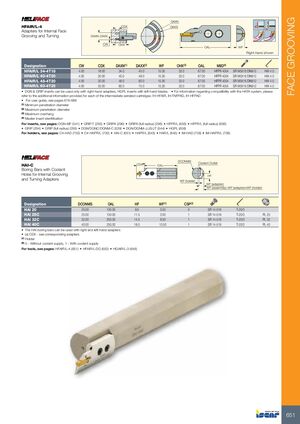

Токарные инструменты Iscar (часть 1) 2026 - страница 653

FACE GROOVING DAXN HFAIR/L-4 CDX DAXX Adapters for Internal Face Grooving and Turning DAXN-DAXX CW OHX OAL WF Right-hand shown Designation CW CDX DAXN(1) DAXX(2) WF OHX(3) OAL MIID(4) HFAIR/L 34-4T18 4.00 18.00 34.0 40.0 15.30 33.0 67.00 HFPR 4004 SR M5X16 DIN912 HW 4.0 HFAIR/L 40-4T20 4.00 20.00 40.0 48.0 15.30 33.0 67.00 HFPR 4004 SR M5X16 DIN912 HW 4.0 HFAIR/L 48-4T20 4.00 20.00 48.0 60.0 15.30 33.0 67.00 HFPR 4004 SR M5X16 DIN912 HW 4.0 HFAIR/L 60-4T25 4.00 25.00 60.0 75.0 15.30 33.0 67.00 HFPR 4004 SR M5X16 DIN912 HW 4.0 • DGN & GRIP inserts can be used only with right-hand adapters, HGPL inserts with left-hand blades. • For information regarding compatibility with the HATA system, please refer to the additional information provided for each of the intermediate serrated cartridges: IH-HFAIR, IH-TNFPAD, IH-HFPAD • For user guide, see pages 676-688 (1) Minimum penetration diameter (2) Maximum penetration diameter (3) Maximum overhang (4) Master insert identification For inserts, see pages: DGN-MF (541) • GRIP-T (295) • GRIPA (296) • GRIPA (full radius) (296) • HFPR/L (656) • HFPR/L (full radius) (656) • GRIP (294) • GRIP (full radius) (295) • DGN/DGNC/DGNM-C (539) • DGN/DGNM-J/JS/JT (544) • HGPL (658) For holders, see pages: C#-HAD (700) • C#-HAPR/L (700) • HAI-C (651) • HAPR/L (645) • HAR/L (645) • IM-HAD (708) • IM-HAPR/L (708) DCONMS CDX(a) Coolant Outlet HAI-C OAL Boring Bars with Coolant Holes for Internal Grooving HF and Turning Adapters WF (holder) WF (adapter) WF (assembly)=WF (adapter)+WF (holder) Designation DCONMS OAL HF WF(1) CSP(2) HAI 20 20.00 130.00 9.0 0.50 0 SR 14-519 T-20/3 HAI 25C 25.00 150.00 11.5 3.00 1 SR 14-519 T-20/3 PL 25 HAI 32C 32.00 200.00 14.5 6.50 1 SR 14-519 T-20/3 PL 32 HAI 40C 40.00 250.00 18.0 10.50 1 SR 14-519 T-20/3 PL 40 • The HAI boring bars can be used with right and left-hand adapters • (a) CDX - see corresponding adapters (1) Holder (2) 0 - Without coolant supply, 1 - With coolant supply For tools, see pages: HFAIR/L-4 (651) • HFAIR/L-DG (652) • HGAIR/L-3 (648) 651
