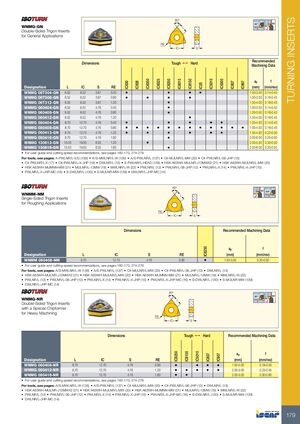

TURNING INSERTS 80° 95º 95° WNMG-GN L 95° Double-Sided Trigon Inserts for General Applications RE IC S Recommended Dimensions Tough 1 Hard Machining Data ap f IC8350 IC6025 IC8250 IC6015 IC8150 IC5010 IC5005 IC830 IC928 IC807 IC907 IC20 Designation L IC S RE (mm) (mm/rev) WNMG 06T304-GN 6.52 9.52 3.97 0.40 • • • • 1.00-3.50 0.14-0.40 WNMG 06T308-GN 6.52 9.52 3.97 0.80 • • • • 1.00-3.50 0.16-0.45 WNMG 06T312-GN 6.52 9.52 3.97 1.20 • 1.50-4.00 0.18-0.45 WNMG 060404-GN 6.52 9.52 4.76 0.40 • 1.00-3.50 0.14-0.40 WNMG 060408-GN 6.52 9.52 4.76 0.80 • 1.00-3.50 0.16-0.45 WNMG 060412-GN 6.52 9.52 4.76 1.20 • 1.50-4.00 0.18-0.45 WNMG 080404-GN 8.70 12.70 4.76 0.40 • • • • • 1.00-4.50 0.14-0.40 WNMG 080408-GN 8.70 12.70 4.76 0.80 • • • • • • • • • • • • 1.00-4.50 0.16-0.45 WNMG 080412-GN 8.70 12.70 4.76 1.20 • • • • • • 1.50-4.50 0.22-0.50 WNMG 080416-GN 8.70 12.70 4.76 1.60 • 2.00-6.00 0.25-0.60 WNMG 130612-GN 13.03 19.05 6.35 1.20 • 2.50-5.50 0.30-0.50 WNMG 130616-GN 13.03 19.05 6.35 1.60 • 2.50-6.00 0.30-0.50 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A-PWLNR/L-X/G (138) • A/S-MWLNR/L-W (136) • A/S-PWLNR/L (137) • C#-MULNR/L-MW (20) • C#-PWLNR/L-08-JHP (13) • C#-PWLNR/L-X (17) • C#-PWLNR/L-X-JHP (18) • DWLNR/L (13) • E-PWLNR/L-HEAD (138) • HSK A63WH-MULNR-J12MWX2 (21) • HSK A63WH-MULNR/L-MW (20) • HSK A63WH-MUMNN-MW (21) • MULNR/L-12MW (19) • MWLNR/L-W (22) • PWLNR/L (12) • PWLNR/L-08-JHP (12) • PWLNR/L-X (14) • PWLNR/L-X-JHP (15) • PWLNR/L-X-JHP-MC (16) • S-DWLNR/L (130) • S-MULNR-MW (139) • DWLNR/L-JHP-MC (14) 80° 95° 95º WNMM-NM L 95° Single-Sided Trigon Inserts for Roughing Applications RE IC S Dimensions Recommended Machining Data ap f IC8250 Designation L IC S RE (mm) (mm/rev) WNMM 080408-NM 8.70 12.70 4.76 0.80 • 1.50-5.00 0.20-0.50 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/S-MWLNR/L-W (136) • A/S-PWLNR/L (137) • C#-MULNR/L-MW (20) • C#-PWLNR/L-08-JHP (13) • DWLNR/L (13) • HSK A63WH-MULNR-J12MWX2 (21) • HSK A63WH-MULNR/L-MW (20) • HSK A63WH-MUMNN-MW (21) • MULNR/L-12MW (19) • MWLNR/L-W (22) • PWLNR/L (12) • PWLNR/L-08-JHP (12) • PWLNR/L-X (14) • PWLNR/L-X-JHP (15) • PWLNR/L-X-JHP-MC (16) • S-DWLNR/L (130) • S-MULNR-MW (139) • DWLNR/L-JHP-MC (14) 80° 95º 95° WNMG-NR L 95° Double-Sided Trigon Inserts with a Special Chipformer for Heavy Machining RE IC S Dimensions Tough 1 Hard Recommended Machining Data ap f IC8250 IC8150 IC5010 IC807 IC907 Designation L IC S RE (mm) (mm/rev) WNMG 080408-NR 8.70 12.70 4.76 0.80 • • • • 1.00-5.00 0.18-0.50 WNMG 080412-NR 8.70 12.70 4.76 1.20 • • • • • 2.00-5.00 0.23-0.55 WNMG 080416-NR 8.70 12.70 4.76 1.60 • • 2.00-5.00 0.30-0.60 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/S-MWLNR/L-W (136) • A/S-PWLNR/L (137) • C#-MULNR/L-MW (20) • C#-PWLNR/L-08-JHP (13) • DWLNR/L (13) • HSK A63WH-MULNR-J12MWX2 (21) • HSK A63WH-MULNR/L-MW (20) • HSK A63WH-MUMNN-MW (21) • MULNR/L-12MW (19) • MWLNR/L-W (22) • PWLNR/L (12) • PWLNR/L-08-JHP (12) • PWLNR/L-X (14) • PWLNR/L-X-JHP (15) • PWLNR/L-X-JHP-MC (16) • S-DWLNR/L (130) • S-MULNR-MW (139) • DWLNR/L-JHP-MC (14) 179
