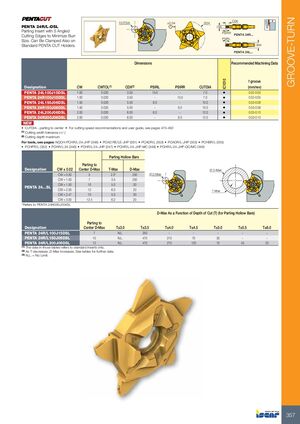

GROOVE-TURN CUTDIA CDX ±0.04 Ø24 PENTA 24R/L-DSL CW Parting Insert with 5 Angled PSIRR Cutting Edges to Minimize Burr PENTA 24R... PSIRL Size. Can Be Clamped Also on Standard PENTA CUT Holders. BW PENTA 24L... Dimensions Recommended Machining Data f groove IC1010 Designation CW CWTOL(1) CDX(2) PSIRL PSIRR CUTDIA (mm/rev) PENTA 24L100J15DSL 1.00 0.020 3.50 15.0 - 7.0 • 0.02-0.05 PENTA 24R100J15DSL 1.00 0.020 3.50 - 15.0 7.0 • 0.02-0.05 PENTA 24L150J06DSL 1.50 0.020 5.00 6.0 - 10.0 • 0.03-0.08 PENTA 24R150J06DSL 1.50 0.020 5.00 - 6.0 10.0 • 0.03-0.08 PENTA 24L200J06DSL 2.00 0.020 6.00 6.0 - 12.0 • 0.03-0.10 PENTA 24R200J06DSL 2.00 0.020 6.00 - 6.0 12.0 • 0.03-0.10 NEW • CUTDIA - parting to center • For cutting speed recommendations and user guide, see pages 475-492 (1) Cutting width tolerance (+/-) (2) Cutting depth maximum For tools, see pages: NQCH-PCHR/L-24-JHP (348) • PCAD RE/LE-JHP (561) • PCADR/L (353) • PCADR/L-JHP (353) • PCHBR/L (355) • PCHPR/L (352) • PCHR/L-24 (346) • PCHR/L-24-JHP (347) • PCHR/L-24-JHP-MC (348) • PCHR/L-24-JHP-QC/MC (349) Parting Hollow Bars Parting to Designation CW ± 0.02 Center D-Max T-Max D-Max Ø D-Max CW = 0�50 5 2�5* 250 Ø D-Max CW = 1�00 7 3�5 250 CW = 1�50 10 5�0 30 PENTA 24...SL CW = 2�00 12 6�0 20 T-Max CW = 2�47 10 5�0 30 CW = 3�00 12�4 6�2 20 *Refers to PENTA 24N050J004SL D-Max As a Function of Depth of Cut (T) (for Parting Hollow Bars) Parting to Designation Center D-Max T≤3.0 T≤3.5 T≤4.0 T≤4.5 T≤5.0 T≤5.5 T≤6.0 PENTA 24R/L100J15DSL 7 N�L� 250 - - - - - PENTA 24R/L150J06DSL 10 N�L� 470 210 70 30 - - PENTA 24R/L200J06DSL 12 N�L� 470 210 120 75 45 20 (1) The data in those tables refers to standard inserts only� (2) As T decreases ,D-Max Increases� See tables for further data� (3) N�L� = No Limit� 357
