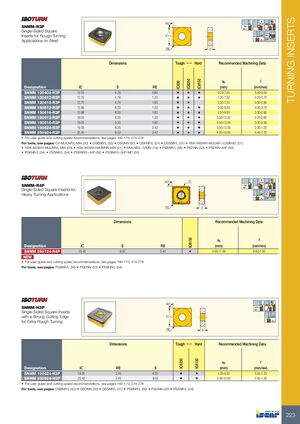

TURNING INSERTS 45º 90° 75º 45º SNMM-R3P 75º Single-Sided Square Inserts for Rough Turning IC=L 45° 75º Applications on Steel RE S Dimensions Tough 1 Hard Recommended Machining Data ap f IC8250 IC8150 IC830 Designation IC S RE (mm) (mm/rev) SNMM 120408-R3P 12.70 4.76 0.80 • • • 0.70-7.50 0.20-0.55 SNMM 120412-R3P 12.70 4.76 1.20 • • • 1.00-7.50 0.25-0.70 SNMM 120416-R3P 12.70 4.76 1.60 • • 2.00-7.50 0.30-0.90 SNMM 150612-R3P 15.88 6.35 1.20 • • • 2.00-9.50 0.30-0.70 SNMM 150616-R3P 15.88 6.35 1.60 • • • 2.50-9.50 0.30-0.90 SNMM 190612-R3P 19.05 6.35 1.20 • • • 3.00-12.00 0.25-0.80 SNMM 190616-R3P 19.05 6.35 1.60 • • • 3.50-12.00 0.30-0.90 SNMM 190624-R3P 19.05 6.35 2.40 • • • 3.50-12.00 0.30-1.20 SNMM 250924-R3P 25.40 9.52 2.40 • • • 4.00-15.00 0.40-1.20 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: C#-MULNR/L-MW (20) • DSBNR/L (52) • DSDNN (50) • DSKNR/L (51) • DSSNR/L (51) • HSK A63WH-MULNR-J12MWX2 (21) • HSK A63WH-MULNR/L-MW (20) • HSK A63WH-MUMNN-MW (21) • MULNR/L-12MW (19) • PSBNR/L (56) • PSDNN (53) • PSDNN-JHP (53) • PSKNR/L (54) • PSSNR/L (54) • PSSNR/L-JHP (55) • PSSNR/L-JHP-MC (55) 45º 90° IC 75º 45º SNMM-R4P 75º Single-Sided Square Inserts for Heavy Turning Applications 45° 75º RE S Dimensions Recommended Machining Data ap f IC8150 Designation IC S RE (mm) (mm/rev) SNMM 250724-R4P 25.40 9.52 2.40 • 4.00-17.00 0.60-1.30 NEW • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: PSBNR/L (56) • PSDNN (53) • PSSNR/L (54) 45º 90° 45º SNMM-H3P 75º Single-Sided Square Inserts with a Strong Cutting Edge IC=L 45° for Extra Rough Turning RE S Dimensions Tough 1 Hard Recommended Machining Data IC8250 IC8150 ap f Designation IC RE S (mm) (mm/rev) SNMM 190624-H3P 19.05 2.40 6.35 • • 4.00-9.00 0.55-1.20 SNMM 250924-H3P 25.40 2.40 9.52 • • 5.00-12.00 0.55-1.30 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: DSBNR/L (52) • DSDNN (50) • DSSNR/L (51) • PSBNR/L (56) • PSDNN (53) • PSSNR/L (54) 223
