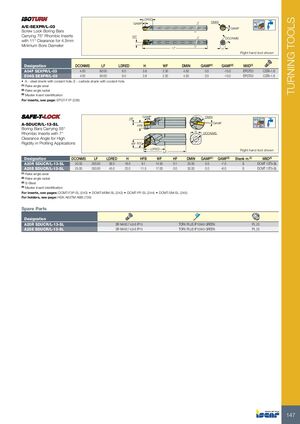

TURNING TOOLS LDRED DMIN GAMP A/E-SEXPR/L-03 GAMF 100º Screw Lock Boring Bars Carrying 75° Rhombic Inserts WF DCONMS with 11° Clearance for 4.5mm Minimum Bore Diameter LF H Right hand tool shown Designation DCONMS LF LDRED H WF DMIN GAMP(1) GAMF(2) MIID(3) A04F SEXPR/L-03 4.00 80.00 8.0 3.8 2.30 4.50 0.0 -15.0 EPGT03 CSTA-1.6 E04G SEXPR/L-03 4.00 90.00 9.0 3.8 2.30 4.50 0.0 -15.0 EPGT03 CSTA-1.6 • A - steel shank with coolant hole, E - carbide shank with coolant hole (1) Rake angle axial (2) Rake angle radial (3) Master insert identification For inserts, see page: EPGT-F1P (238) GAMP DMIN HF 93º-95º A-SDUCR/L-13-SL GAMF HFB 30º MAX Boring Bars Carrying 55° H Rhombic Inserts with 7° DCONMS Clearance Angle for High Rigidity in Profiling Applications WF 93° LDRED Right hand tool shown LF Designation DCONMS LF LDRED H HFB WF HF DMIN GAMP(1) GAMF(2) Shank m.(3) MIID(4) A20R SDUCR/L-13-SL 20.00 200.00 36.0 18.0 9.1 14.50 0.1 25.00 0.0 -7.0 S DCMT 13T5-SL A25S SDUCR/L-13-SL 25.00 250.00 45.0 23.0 11.5 17.00 0.0 32.00 0.0 -6.0 S DCMT 13T5-SL (1) Rake angle axial (2) Rake angle radial (3) S-Steel (4) Master insert identification For inserts, see pages: DCMT-F3P-SL (240) • DCMT-M3M-SL (242) • DCMT-PF-SL (244) • DCMT-SM-SL (245) For holders, see page: HSK A63TM ABB (739) Spare Parts Designation A20R SDUCR/L-13-SL SR M4X0.7-L9.6 IP15 TORX PLUS IP15X45 GREEN PL 20 A25S SDUCR/L-13-SL SR M4X0.7-L9.6 IP15 TORX PLUS IP15X45 GREEN PL 25 147
