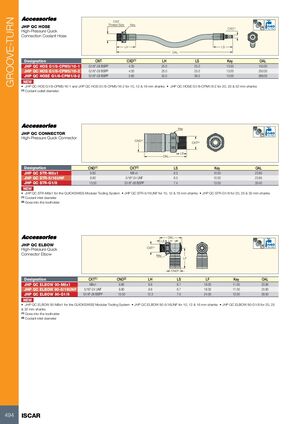

GROOVE-TURN CNT Thread Size Key JHP QC HOSE CXD(1) Bar Max High-Pressure Quick Connection Coolant Hose LH LS OAL Designation CNT CXD(1) LH LS Key OAL JHP QC HOS G1/8-CPM5/16-1 G1/8"-28 BSPP 4.00 25.0 25.0 13.00 150.00 JHP QC HOS G1/8-CPM5/16-2 G1/8"-28 BSPP 4.00 25.0 25.0 13.00 250.00 JHP QC HOSE G1/8-CPM1/8-2 G1/8"-28 BSPP 5.60 32.0 36.0 13.00 268.00 NEW • JHP QC HOS G1/8-CPM5/16-1 and JHP QC HOS G1/8-CPM5/16-2 for 10, 12 & 16 mm shanks • JHP QC HOSE G1/8-CPM1/8-2 for 20, 25 & 32 mm shanks (1) Coolant outlet diameter Key JHP QC CONNECTOR Bar Max High-Pressure Quick Connector CND(1) CXT(2) LS OAL Designation CND(1) CXT(2) LS Key OAL JHP QC STR-M8x1 9.80 M8 x1 6.5 10.00 23.85 JHP QC STR-5/16UNF 9.80 5/16"-24 UNF 6.5 10.00 23.85 JHP QC STR-G1/8 13.50 G1/8"-28 BSPP 7.4 13.00 30.40 NEW • JHP QC STR-M8x1 for the QUICKSWISS Modular Tooling System • JHP QC STR-5/16UNF for 10, 12 & 16 mm shanks • JHP QC STR-G1/8 for 20, 25 & 32 mm shanks (1) Coolant inlet diameter (2) Goes into the toolholder OAL LS LH JHP QC ELBOW Bar Max CXT(1) High-Pressure Quick Connector Elbow Key LF CND(2) Designation CXT(1) CND(2) LH LS LF Key OAL JHP QC ELBOW 90-M8x1 M8x1 9.80 9.6 6.7 18.00 11.00 23.80 JHP QC ELBOW 90-5/16UNF 5/16"-24 UNF 9.80 9.6 6.7 18.00 11.00 23.80 JHP QC ELBOW 90-G1/8 G1/8"-28 BSPP 13.50 12.3 7.5 24.00 13.00 29.50 NEW • JHP QC ELBOW 90-M8x1 for the QUICKSWISS Modular Tooling System • JHP QC ELBOW 90-5/16UNF for 10, 12 & 16 mm shanks • JHP QC ELBOW 90-G1/8 for 20, 25 & 32 mm shanks (1) Goes into the toolholder (2) Coolant inlet diameter 494 ISCAR
