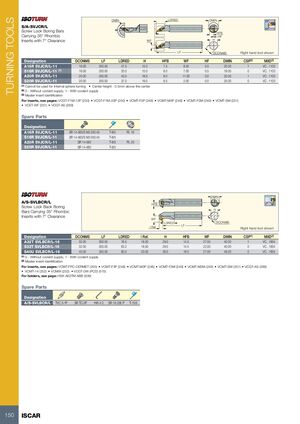

Токарные инструменты Iscar (часть 1) 2026 - страница 152

TURNING TOOLS DMIN LDRED DMIN 52º S/A-SVJCR/L 93º Screw Lock Boring Bars 52° HFB Carrying 35° Rhombic HF Inserts with 7° Clearance WF H LF DCONMS Right hand tool shown Designation DCONMS LF LDRED H HFB WF HF DMIN CSP(2) MIID(3) A16R SVJCR/L-11 16.00 200.00 47.5 15.0 7.5 8.50 0.0 20.00 1 VC.. 1103 S16R SVJCR/L-11 (1) 16.00 200.00 20.0 15.0 8.0 7.00 0.5 19.00 0 VC.. 1103 A20R SVJCR/L-11 20.00 200.00 43.0 18.0 9.0 11.00 0.0 25.00 1 VC.. 1103 S20R SVJCR/L-11 20.00 200.00 37.0 19.0 9.5 2.00 0.0 25.00 0 VC.. 1103 (1) Cannot be used for internal sphere turning • Center height - 0.5mm above the center (2) 0 - Without coolant supply, 1 - With coolant supply (3) Master insert identification For inserts, see pages: VCGT-F1M-12P (250) • VCGT-F1M-20P (250) • VCMT-F3P (248) • VCMT-M3P (248) • VCMT-F3M (249) • VCMT-SM (251) • VCET-WF (251) • VCGT-AS (269) Spare Parts Designation A16R SVJCR/L-11 SR 14-560/S M2.5X0.45 T-8/5 PL 16 S16R SVJCR/L-11 SR 14-560/S M2.5X0.45 T-8/5 A20R SVJCR/L-11 SR 14-560 T-8/5 PL 20 S20R SVJCR/L-11 SR 14-560 T-8/5 DMIN A/S-SVLBCR/L HFB 95º Screw Lock Back Boring H Bars Carrying 35° Rhombic Inserts with 7° Clearance WF LDRED DCONMS LF l Ref. Right hand tool shown Designation DCONMS LF LDRED l Ref. H HFB WF DMIN CSP(1) MIID(2) A32T SVLBCR/L-16 32.00 300.00 76.5 18.50 29.0 14.5 27.50 40.00 1 VC.. 1604 S32T SVLBCR/L-16 32.00 300.00 63.2 18.50 29.0 14.5 22.00 40.00 0 VC.. 1604 S40U SVLBCR/L-16 40.00 350.00 60.0 20.00 36.0 18.0 27.00 49.50 0 VC.. 1604 (1) 0 - Without coolant supply, 1 - With coolant supply (2) Master insert identification For inserts, see pages: VCMT-FPC-CERMET (250) • VCMT-F3P (248) • VCMT-M3P (248) • VCMT-F3M (249) • VCMT-M3M (249) • VCMT-SM (251) • VCGT-AS (269) • VCMT-14 (252) • VCMW (252) • VCGT-DW (PCD) (515) For holders, see page: HSK A63TM ABB (839) Spare Parts Designation A/S-SVLBCR/L TVC 3-1P SR TC-3P HW 4.0 SR 16-236 P T-15/5 150 ISCAR
