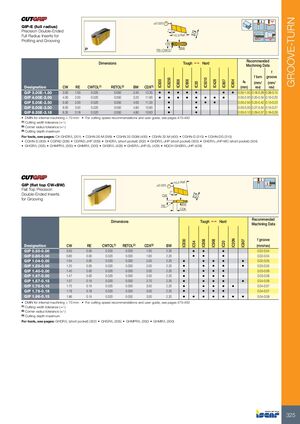

GROOVE-TURN
±0.025
GIP-E (full radius)
Precision Double-Ended 7°
5
Full Radius Inserts for 15.3 Ref.
Profiling and Grooving
CW
BW
RE=CW/2
Recommended
Dimensions Tough 1 Hard
Machining Data
f
f turn groove
IC8250
IC5010
ap
IC830
IC808
IC908
IC428
IC807
IC804
(mm/ (mm/
IC20
Designation CW RE CWTOL(1) RETOL(2) BW CDX(3) (mm) rev) rev)
GIP 3.00E-1.50 3.00 1.50 0.020 0.050 2.40 12.30 • • • • • • • 0.00-1.50 0.18-0.28 0.08-0.15
GIP 4.00E-2.00 4.00 2.00 0.020 0.050 3.20 11.80 • • • • • • • • 0.00-2.00 0.20-0.34 0.10-0.20
GIP 5.00E-2.50 5.00 2.50 0.020 0.050 4.00 11.30 • • • • 0.00-2.50 0.25-0.42 0.13-0.23
GIP 6.00E-3.00 6.00 3.00 0.020 0.050 4.80 10.80 • • 0.00-3.00 0.27-0.54 0.15-0.27
GIP 6.35E-3.18 6.35 3.18 0.020 0.050 4.80 10.63 • • 0.00-3.10 0.29-0.57 0.16-0.29
• DMIN for internal machining = 70 mm • For cutting speed recommendations and user guide, see pages 475-492
(1) Cutting width tolerance (+/-)
(2) Corner radius tolerance (+/-)
(3) Cutting depth maximum
For tools, see pages: C#-GHDR/L (301) • CGHN 26-M (399) • CGHN 32-DGM (400) • CGHN 32-M (400) • CGHN-D (310) • CGHN-DG (310)
• CGHN-S (309) • CGPAD (308) • CGPAD-JHP (309) • GHDR/L (short pocket) (302) • GHDR/L-JHP (short pocket) (303) • GHDR/L-JHP-MC (short pocket) (304)
• GHGR/L (305) • GHMPR/L (300) • GHMR/L (300) • GHSR/L (428) • GHSR/L-JHP-SL (429) • NQCH-GHSR/L-JHP (428)
15.3 Ref.
GIP (flat top CW
