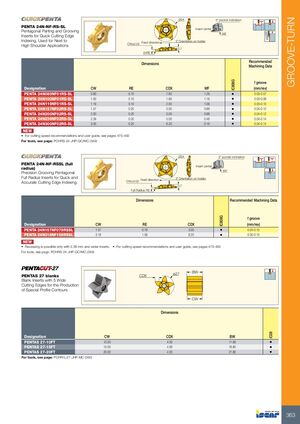

GROOVE-TURN Ø24 3° pocket inclination PENTA 24N-NF-RS-SL Insert center Pentagonal Parting and Grooving WF Inserts for Quick Cutting Edge Indexing. Used for Next to Feed direction 3˚ Orientation on holder CW±0.02 High Shoulder Applications 3.7 2xRE Recommended Dimensions Machining Data IC808G f groove Designation CW RE CDX WF (mm/rev) PENTA 24N080NF01RS-SL 0.80 0.10 1.60 1.26 • 0.03-0.07 PENTA 24N100NF01RS-SL 1.00 0.10 1.80 1.16 • 0.03-0.08 PENTA 24N119NF01RS-SL 1.19 0.10 2.00 1.06 • 0.03-0.10 PENTA 24N157NF02RS-SL 1.57 0.20 3.00 0.88 • 0.04-0.12 PENTA 24N200NF02RS-SL 2.00 0.20 3.00 0.66 • 0.04-0.12 PENTA 24N239NF02RS-SL 2.39 0.20 5.00 0.46 • 0.04-0.14 PENTA 24N300NF02RS-SL 3.00 0.20 6.20 0.16 • 0.04-0.14 NEW • For cutting speed recommendations and user guide, see pages 475-492 For tools, see page: PCHRS-24 JHP-QC/MC (349) Ø24 3° pocket inclination PENTA 24N-NF-RSSL (full Insert center radius) WF Precision Grooving Pentagonal Full Radius Inserts for Quick and Feed direction 3˚ Orientation on holder Accurate Cutting Edge Indexing. CW±0.02 3.7 Full Radius RE Dimensions Recommended Machining Data IC808G f groove Designation CW RE CDX (mm/rev) PENTA 24N157NF079RSSL 1.57 0.79 3.00 • 0.04-0.10 PENTA 24N318NF159RSSL 3.18 1.59 6.20 • 0.05-0.15 NEW • Recessing is possible only with 2.39 mm and wider inserts. • For cutting speed recommendations and user guide, see pages 475-492 For tools, see pags: PCHRS-24 JHP-QC/MC (349) ø27 BW PENTAS 27 blanks CDX Blank Inserts with 5 Wide Cutting Edges for the Production of Special Profile Contours CW Dimensions IC08 Designation CW CDX BW PENTAS 27-10FT 10.00 4.00 11.80 • PENTAS 27-15FT 15.00 4.00 16.80 • PENTAS 27-20FT 20.00 4.00 21.80 • For tools, see page: PCHR/L-27-JHP-MC (350) 363
