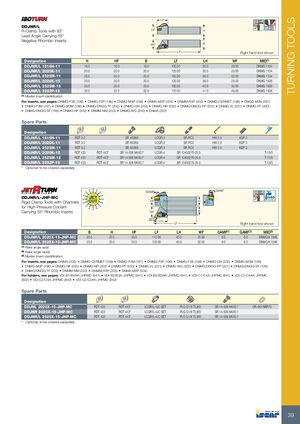

TURNING TOOLS LH 27° MAX 15° DDJNR/L 93° R-Clamp Tools with 93° HF H Lead Angle Carrying 55° Negative Rhombic Inserts WF B LF Right hand tool shown Designation H HF B LF LH WF MIID(1) DDJNR/L 1616H-11 16.0 16.0 16.0 100.00 30.0 20.00 DNMG 1104 DDJNR/L 2020K-11 20.0 20.0 20.0 125.00 30.0 25.00 DNMG 1104 DDJNR/L 2525M-11 25.0 25.0 25.0 150.00 30.0 32.00 DNMG 1104 DDJNR/L 2020K-15 20.0 20.0 20.0 125.00 39.0 25.00 DNMG 1506 DDJNR/L 2525M-15 25.0 25.0 25.0 150.00 40.0 32.00 DNMG 1506 DDJNR/L 3232P-15 32.0 32.0 32.0 170.00 41.0 40.00 DNMG 1506 (1) Master insert identification For inserts, see pages: DNMG-F3S (198) • DNMG-F3P (196) • DNMG-M3P (196) • DNMX-M3P (204) • DNMM-R3P (203) • DNMG-CERMET (199) • DNGG-M3N (267) • DNMG-F3M (197) • DNMG-M3M (198) • DNMG/DNGG-TF (202) • DNMG-GN (202) • DNMG-NR (202) • DNMG/DNGG-PP (201) • DNMG-VL (201) • DNMG-PF (200) • DNMG/DNGG-SF (199) • DNMG-NF (200) • DNMM-NM (203) • DNMG-WG (200) • DNMA (203) Spare Parts Designation DDJNR/L 1616H-11 RDT 3-2 SR 40085I LCGR-3 SR RC3 HW 2.5 KSP 3 DDJNR/L 2020K-11 RDT 3-2 SR 40085I LCGR-3 SR RC3 HW 2.5 KSP 3 DDJNR/L 2525M-11 RDT 3-2 SR 40085I LCGR-3 SR RC3 HW 2.5 KSP 3 DDJNR/L 2020K-15 RDT 433 RDT 443* SR 14-506 M4X0.7 LCGR-4 SR 10400270-25.5 T-15/5 DDJNR/L 2525M-15 RDT 433 RDT 443* SR 14-506 M4X0.7 LCGR-4 SR 10400270-25.5 T-15/5 DDJNR/L 3232P-15 RDT 433 RDT 443* SR 14-506 M4X0.7 LCGR-4 SR 10400270-25.5 T-15/5 * Optional, to be ordered separately GAMP GAMF 27° MAX DDJNR/L-JHP-MC 93° Bar Max Rigid Clamp Tools with Channels HF H for High-Pressure Coolant Carrying 55° Rhombic Inserts WF B 93° LH LF Right hand tool shown Designation B H HF LF LH WF GAMP(1) GAMF(2) MIID(3) DDJNR/L 2020X-15-JHP-MC 20.0 20.0 20.0 110.00 40.0 25.00 6.0 6.0 DNMG/X 1506 DDJNR/L 2525X-15-JHP-MC 25.0 25.0 25.0 125.00 40.0 32.00 6.0 6.0 DNMG/X 1506 (1) Rake angle axial (2) Rake angle radial (3) Master insert identification For inserts, see pages: DNMA (203) • DNMG-CERMET (199) • DNMG-F3M (197) • DNMG-F3P (196) • DNMG-F3S (198) • DNMG-GN (202) • DNMG-M3M (198) • DNMG-M3P (196) • DNMG-NF (200) • DNMG-NR (202) • DNMG-PF (200) • DNMG-VL (201) • DNMG-WG (200) • DNMG/DNGG-PP (201) • DNMG/DNGG-SF (199) • DNMG/DNGG-TF (202) • DNMM-NM (203) • DNMM-R3P (203) • DNMX-M3P (204) For holders, see pages: VDI-B1/B4AK-JHPMC (841) • VDI-B2/B3A-JHPMC (841) • VDI-B2/B3AK-JHPMC (841) • VDI-C1/C4A-JHPMC (841) • VDI-C1/C4AK-JHPMC (842) • VDI-C2/C3A-JHPMC (842) • VDI-C2/C3AK-JHPMC (842) Spare Parts Designation DDJNL 2020X-15-JHP-MC RDT 433 RDT 443* LCGR/L-4JC SET PLG G1/8 TL360 SR 14-506 M4X0.7 OR 4X3 NBR70 DDJNR 2020X-15-JHP-MC RDT 433 RDT 443* LCGR/L-4JC SET PLG G1/8 TL360 SR 14-506 M4X0.7 DDJNR/L 2525X-15-JHP-MC RDT 433 RDT 443* LCGR/L-4JC SET PLG G1/8 TL360 SR 14-506 M4X0.7 * Optional, to be ordered separately 39
