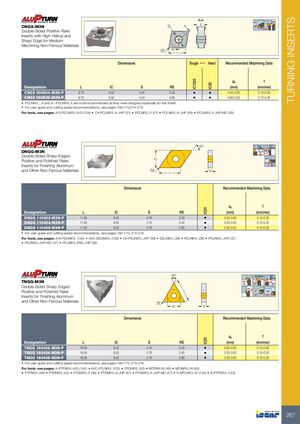

TURNING INSERTS A-A 95º IC A S CNGX-M3N 95º 95º Double-Sided Positive Rake Inserts with High Helical and Sharp Edge for Medium Machining Non-Ferrous Materials RE A L Dimensions Tough 1 Hard Recommended Machining Data ap f IC1520 IC20 Designation L IC S RE (mm) (mm/rev) CNGX 090604-M3N-P 9.70 9.52 4.40 0.40 • • 0.40-3.00 0.10-0.30 CNGX 090608-M3N-P 9.70 9.52 4.40 0.80 • • 0.80-3.00 0.10-0.30 • PCLNR/L...X and A..-PCLNR/L-X are most recommended as they were designed especially for this insert • For user guide and cutting speed recommendations, see pages 160-170,274-278 For tools, see pages: A/S-PCLNR/L-X/G (134) • C#-PCLNR/L-X-JHP (31) • PCLNR/L-X (27) • PCLNR/L-X-JHP (28) • PCLNR/L-X-JHP-MC (29) 55° 60° 27° MAX MAX DNGG-M3N 62.5º 93° Double-Sided Sharp-Edged IC 93º-95º Positive and Polished Rake Inserts for Finishing Aluminum 30º MAX and Other Non-Ferrous Materials RE L S Dimensions Recommended Machining Data IC20 ap f Designation L IC S RE (mm) (mm/rev) DNGG 110402-M3N-P 11.63 9.52 4.76 0.20 • 0.30-3.00 0.10-0.30 DNGG 110404-M3N-P 11.63 9.52 4.76 0.40 • 0.30-3.00 0.10-0.30 DNGG 110408-M3N-P 11.63 9.52 4.76 0.80 • 0.30-3.00 0.10-0.30 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/S-PDUNR/L (140) • AVC-DDUNR/L (126) • C#-PDJNR/L-JHP (38) • DDJNR/L (39) • PDJNR/L (36) • PDJNR/L-JHP (37) • PDJNR/L-JHP-MC (37) • PDJNR/L-PAD-JHP (38) 60° 22°MAX 55° MAX TNGG-M3N 91º 93 º 60º Double-Sided Sharp Edged 91º Positive and Polished Rake L 91º 95º Inserts for Finishing Aluminum and Other Non-Ferrous Materials RE IC S Dimensions Recommended Machining Data ap f IC20 Designation L IC S RE (mm) (mm/rev) TNGG 160402-M3N-P 16.50 9.52 4.76 0.20 • 0.30-3.00 0.10-0.30 TNGG 160404-M3N-P 16.50 9.52 4.76 0.40 • 0.30-3.00 0.10-0.30 TNGG 160408-M3N-P 16.50 9.52 4.76 0.80 • 0.30-3.00 0.10-0.30 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A-PTFNR/L-X/G (142) • AVC-PTLNR/L (125) • DTGNR/L (50) • MTENN-W (49) • MTJNR/L-W (49) • PTFNR/L (48) • PTGNR/L (45) • PTGNR/L-X (46) • PTGNR/L-X-JHP (47) • PTGNR/L-X-JHP-MC (47) • S-MTLNR/L-W (143) • S-PTFNR/L (143) 267
