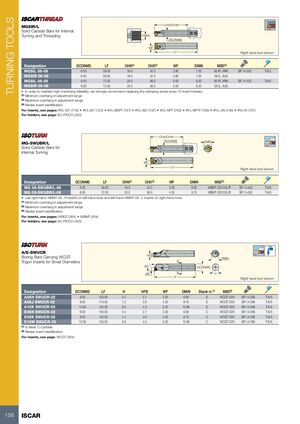

Токарные инструменты Iscar (часть 1) 2026 - страница 158

TURNING TOOLS OHX/OHN MGSIR/L Solid Carbide Bars for Internal Turning and Threading DMIN DCONMS WF LF Right hand tool shown Designation DCONMS LF OHN(1) OHX(2) WF DMIN MIID(3) MGSIL 06-06 6.00 59.00 16.0 42.0 3.90 7.00 06 IR../IRM.. SR 14-552 T-6/5 MGSIR 06-06 6.00 59.00 16.0 42.0 3.90 7.00 06 IL../ILM.. MGSIL 08-06 8.00 72.00 20.0 56.0 5.00 9.20 06 IR../IRM.. SR 14-552 T-6/5 MGSIR 08-06 8.00 72.00 20.0 56.0 5.00 9.20 06 IL../ILM.. • In order to maintain high machining reliability, we strongly recommend replacing the clamping screw every 10 insert indexes (1) Minimum overhang in adjustment range (2) Maximum overhang in adjustment range (3) Master insert identification For inserts, see pages: IR/L-55° (716) • IR/L-60° (723) • IR/L-BSPT (767) • IR/L-ISO (737) • IR/L-NPT (762) • IR/L-NPTF (765) • IR/L-UN (749) • IR/L-W (757) For holders, see page: SC-PICCO (420) OHX/OHN DCONMS DMIN 93º MG-SWUBR/L Solid Carbide Bars for Internal Turning WF LF Right hand tool shown Designation DCONMS LF OHN(1) OHX(2) WF DMIN MIID(3) MG 06-SWUBR/L-06 6.00 59.00 16.0 42.0 3.30 6.60 WBMT 020102L/R SR 14-552 T-6/5 MG 08-SWUBR/L-06 8.00 72.00 20.0 56.0 4.30 8.70 WBMT 020102L/R SR 14-552 T-6/5 • Use right-hand WBMT 06...R inserts on left-hand tools and left-hand WBMT 06...L inserts on right-hand tools (1) Minimum overhang in adjustment range (2) Maximum overhang in adjustment range (3) Master insert identification For inserts, see pages: WBGT (264) • WBMT (264) For holders, see page: SC-PICCO (420) 93º A/E-SWUCR HFB Boring Bars Carrying WCGT DMIN Trigon Inserts for Small Diameters B 93˚ DCONMS WF B H LF Right hand tool shown Designation DCONMS LF H HFB WF DMIN Shank m.(1) MIID(2) A06H SWUCR-02 6.00 100.00 5.4 2.7 3.30 6.60 S WCGT 0201 SR 14-299 T-6/5 A08J SWUCR-02 8.00 110.00 7.2 3.6 4.25 8.70 S WCGT 0201 SR 14-299 T-6/5 A10K SWUCR-02 10.00 125.00 9.0 4.5 5.20 10.90 S WCGT 0201 SR 14-299 T-6/5 E06H SWUCR-02 6.00 100.00 5.4 2.7 3.30 6.60 C WCGT 0201 SR 14-299 T-6/5 E08K SWUCR-02 8.00 125.00 7.2 3.6 4.30 8.70 C WCGT 0201 SR 14-299 T-6/5 E10M SWUCR-02 10.00 150.00 9.0 4.5 5.20 10.90 C WCGT 0201 SR 14-299 T-6/5 (1) S-Steel, C-Carbide (2) Master insert identification For inserts, see page: WCGT (264) 156 ISCAR
