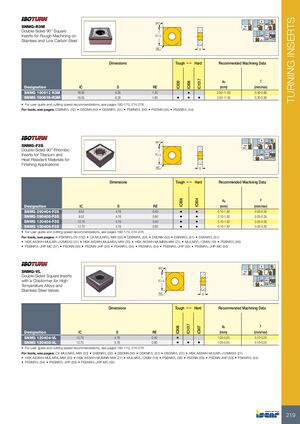

Токарные инструменты Iscar (часть 1) 2026 - страница 221

TURNING INSERTS 45º 90° 75º 45º SNMG-R3M 75º Double-Sided 90° Square Inserts for Rough Machining on IC=L 45° 75º Stainless and Low Carbon Steel RE S Dimensions Tough 1 Hard Recommended Machining Data ap f IC1017 IC830 IC806 Designation IC S RE (mm) (mm/rev) SNMG 190612 R3M 19.05 6.35 1.20 • 2.00-11.00 0.30-0.90 SNMG 190616-R3M 19.05 6.35 1.60 • • • 2.00-11.00 0.30-0.90 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: DSBNR/L (52) • DSDNN (50) • DSSNR/L (51) • PSBNR/L (56) • PSDNN (53) • PSSNR/L (54) 45º 90° 75º 45º SNMG-F3S 75º Double-Sided 90° Rhombic Inserts for Titanium and IC=L 45° 75º Heat Resistant Materials for Finishing Applications RE S Dimensions Tough 1 Hard Recommended Machining Data ap f IC806 IC804 Designation IC S RE (mm) (mm/rev) SNMG 090404-F3S 9.52 4.76 0.40 • • 0.10-1.50 0.05-0.35 SNMG 090408-F3S 9.52 4.76 0.80 • • 0.10-1.50 0.05-0.35 SNMG 120404-F3S 12.70 4.76 0.40 • • 0.10-1.50 0.05-0.35 SNMG 120408-F3S 12.70 4.76 0.80 • • 0.10-1.50 0.05-0.35 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A-PSKNR/L-09 (152) • C#-MULNR/L-MW (20) • DSBNR/L (52) • DSDNN (50) • DSKNR/L (51) • DSSNR/L (51) • HSK A63WH-MULNR-J12MWX2 (21) • HSK A63WH-MULNR/L-MW (20) • HSK A63WH-MUMNN-MW (21) • MULNR/L-12MW (19) • PSBNR/L (56) • PSBNR/L-JHP-MC (57) • PSDNN (53) • PSDNN-JHP (53) • PSKNR/L (54) • PSSNR/L (54) • PSSNR/L-JHP (55) • PSSNR/L-JHP-MC (55) 45º 90° 75º 45º SNMG-VL 75º Double-Sided Square Inserts with a Chipformer for High IC=L 45° 75º Temperature Alloys and Stainless Steel Valves RE S Dimensions Tough 1 Hard Recommended Machining Data ap f IC1017 IC806 IC907 Designation IC S RE (mm) (mm/rev) SNMG 120404-VL 12.70 4.76 0.40 • 1.00-5.00 0.10-0.25 SNMG 120408-VL 12.70 4.76 0.80 • • • 1.00-5.00 0.10-0.25 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: C#-MULNR/L-MW (20) • DSBNR/L (52) • DSDNN (50) • DSKNR/L (51) • DSSNR/L (51) • HSK A63WH-MULNR-J12MWX2 (21) • HSK A63WH-MULNR/L-MW (20) • HSK A63WH-MUMNN-MW (21) • MULNR/L-12MW (19) • PSBNR/L (56) • PSDNN (53) • PSDNN-JHP (53) • PSKNR/L (54) • PSSNR/L (54) • PSSNR/L-JHP (55) • PSSNR/L-JHP-MC (55) 219
