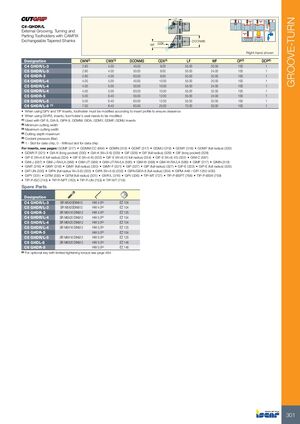

GROOVE-TURN LF C#-GHDR/L External Grooving, Turning and Parting Toolholders with CAMFIX Exchangeable Tapered Shanks DCONMS CDX WF Right-hand shown Designation CWN(2) CWX(3) DCONMS CDX(4) LF WF CP(5) DCP(6) C4 GHDR/L-3 2.80 4.00 40.00 9.00 55.00 20.00 100 1 C5 GHDR/L-3 2.80 4.00 50.00 9.00 55.00 24.00 100 1 C6 GHDR-3 2.80 4.00 63.00 9.00 55.00 32.00 100 1 C4 GHDR/L-4 4.00 5.00 40.00 10.00 55.00 20.00 100 1 C5 GHDR/L-4 4.00 5.00 50.00 10.00 55.00 24.00 100 1 C6 GHDR/L-4 4.00 5.00 63.00 10.00 55.00 32.00 100 1 C5 GHDR-5 5.00 6.40 50.00 12.00 55.00 24.00 100 1 C6 GHDR/L-5 5.00 6.40 63.00 12.00 55.00 32.00 100 1 C6 GHDR/L-8 (1) 7.00 8.40 63.00 25.00 70.00 30.00 100 1 • When using GPV and TIP inserts, toolholder must be modified according to insert profile to ensure clearance • When using GIVR/L inserts, tool holder’s seat needs to be modified (1) Used with GIF 8, GIA 8, GIPA 8, GDMM, GIDA, GDMY, GDMF, GDMU inserts (2) Minimum cutting width (3) Maximum cutting width (4) Cutting depth maximum (5) Coolant pressure (Bar) (6) 1 - Slot for data chip, 0 - Without slot for data chip For inserts, see pages: GDMF (317) • GDMM-CC (664) • GDMN (319) • GDMT (317) • GDMU (319) • GDMY (318) • GDMY (full radius) (320) • GDMY-F (321) • GIA-K (long pocket) (330) • GIA-K (W=3-6) (329) • GIF (328) • GIF (full radius) (329) • GIF (long pocket) (328) • GIF-E (W=4-6 full radius) (324) • GIF-E (W=4-6) (322) • GIF-E (W=8,10 full radius) (324) • GIF-E (W=8,10) (322) • GIM-C (587) • GIM-J (587) • GIM-J-RA/LA (588) • GIM-UT (589) • GIM-UT-RA/LA (590) • GIM-W (588) • GIM-W-RA/LA (589) • GIMF (317) • GIMN (319) • GIMT (316) • GIMY (318) • GIMY (full radius) (320) • GIMY-F (321) • GIP (327) • GIP (full radius) (327) • GIP-E (323) • GIP-E (full radius) (325) • GIP-UN (335) • GIPA (full radius W=3-6) (333) • GIPA (W=3-6) (332) • GIPA/GIDA 8 (full radius) (334) • GIPM-A46 / GIP-1250 (430) • GIPY (331) • GITM (330) • GITM (full radius) (331) • GIVR/L (316) • GPV (336) • TIP-MT (727) • TIP-P-BSPT (768) • TIP-P-BSW (759) • TIP-P-ISO (743) • TIP-P-NPT (763) • TIP-P-UN (753) • TIP-WT (718) Spare Parts Designation C4 GHDR/L-3 SR M5X20DIN912 HW 4.0(a) EZ 104 C5 GHDR/L-3 SR M5X20DIN912 HW 4.0(a) EZ 104 C6 GHDR-3 SR M5X16 DIN912 HW 4.0(a) EZ 125 C4 GHDR/L-4 SR M6X20 DIN912 HW 5.0(a) EZ 104 C5 GHDR/L-4 SR M6X20 DIN912 HW 5.0(a) EZ 104 C6 GHDR/L-4 SR M6X16 DIN912 HW 5.0(a) EZ 125 C5 GHDR-5 HW 5.0(a) EZ 104 C6 GHDR/L-5 SR M6X16 DIN912 HW 5.0(a) EZ 125 C6 GHDL-8 SR M6X20 DIN912 HW 5.0(a) EZ 146 C6 GHDR-8 HW 5.0(a) EZ 146 (a) For optional key with limited tightening torque see page 484 301
