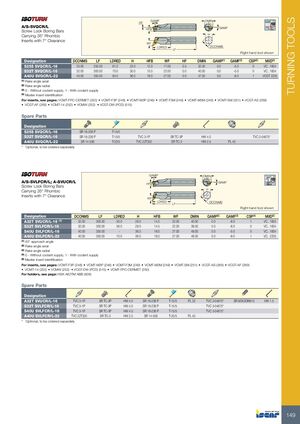

TURNING TOOLS GAMP DMIN HF 107.5º A/S-SVQCR/L GAMF HFB 35º MAX Screw Lock Boring Bars H Carrying 35° Rhombic Inserts with 7° Clearance WF LDRED DCONMS LF Right hand tool shown Designation DCONMS LF LDRED H HFB WF HF DMIN GAMP(1) GAMF(2) CSP(3) MIID(4) S25S SVQCR/L-16 25.00 250.00 61.0 23.0 12.0 17.00 0.5 32.00 0.0 -5.0 0 VC.. 1604 S32T SVQCR/L-16 32.00 300.00 70.0 30.0 15.0 22.00 0.0 40.00 0.0 -5.0 0 VC.. 1604 A40U SVQCR/L-22 40.00 350.00 64.0 36.0 18.0 27.00 0.0 47.50 0.0 -8.0 1 VCGT 2205 (1) Rake angle axial (2) Rake angle radial (3) 0 - Without coolant supply, 1 - With coolant supply (4) Master insert identification For inserts, see pages: VCMT-FPC-CERMET (250) • VCMT-F3P (248) • VCMT-M3P (248) • VCMT-F3M (249) • VCMT-M3M (249) • VCMT-SM (251) • VCGT-AS (269) • VCGT-AF (269) • VCMT-14 (252) • VCMW (252) • VCGT-DW (PCD) (515) Spare Parts Designation S25S SVQCR/L-16 SR 16-236 P T-15/5 S32T SVQCR/L-16 SR 16-236 P T-15/5 TVC 3-1P SR TC-3P HW 4.0 TVC 3-04675* A40U SVQCR/L-22 SR 14-536 T-20/5 TVC 22T330 SR TC-3 HW 2.5 PL 40 * Optional, to be ordered separately GAMP DMIN 95º A/S-SVLFCR/L; A-SVUCR/L HFB GAMF 48° MAX Screw Lock Boring Bars H Carrying 35° Rhombic Inserts with 7° Clearance WF LDRED DCONMS LF Right hand tool shown Designation DCONMS LF LDRED H HFB WF DMIN GAMP(2) GAMF(3) CSP(4) MIID(5) A32T SVUCR/L-16 (1) 32.00 300.00 50.0 29.0 14.5 22.00 40.00 0.0 -8.0 1 VC.. 1604 S32T SVLFCR/L-16 32.00 300.00 56.0 29.0 14.5 22.00 39.50 0.0 -8.0 0 VC.. 1604 S40U SVLFCR/L-16 40.00 350.00 - 36.0 18.0 27.00 49.00 0.0 -5.0 0 VC.. 1604 A40U SVLFCR/L-22 40.00 350.00 70.0 36.0 18.0 27.00 48.00 0.0 -8.0 1 VC.. 2205 (1) 93° approach angle (2) Rake angle axial (3) Rake angle radial (4) 0 - Without coolant supply, 1 - With coolant supply (5) Master insert identification For inserts, see pages: VCMT-F3P (248) • VCMT-M3P (248) • VCMT-F3M (249) • VCMT-M3M (249) • VCMT-SM (251) • VCGT-AS (269) • VCGT-AF (269) • VCMT-14 (252) • VCMW (252) • VCGT-DW (PCD) (515) • VCMT-FPC-CERMET (250) For holders, see page: HSK A63TM ABB (839) Spare Parts Designation A32T SVUCR/L-16 TVC 3-1P SR TC-3P HW 4.0 SR 16-236 P T-15/5 PL 32 TVC 3-04675* SR M3X3DIN913 HW 1.5 S32T SVLFCR/L-16 TVC 3-1P SR TC-3P HW 4.0 SR 16-236 P T-15/5 TVC 3-04675* S40U SVLFCR/L-16 TVC 3-1P SR TC-3P HW 4.0 SR 16-236 P T-15/5 TVC 3-04675* A40U SVLFCR/L-22 TVC 22T330 SR TC-3 HW 2.5 SR 14-536 T-20/5 PL 40 * Optional, to be ordered separately 149
