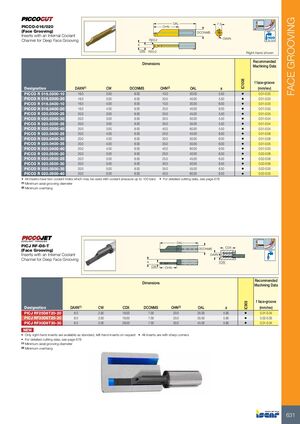

FACE GROOVING OAL 7.3 PICCO-016/020 OHN (Face Grooving) DCONMS Inserts with an Internal Coolant DAXN Channel for Deep Face Grooving RE0.2 Bar Max a CW RE0.2 Right-hand shown Recommended Dimensions Machining Data IC1008 f face-groove Designation DAXN(1) CW DCONMS OHN(2) OAL a (mm/rev) PICCO R 016.0300-10 16.0 3.00 8.00 10.0 30.00 5.50 • 0.01-0.05 PICCO R 016.0300-20 16.0 3.00 8.00 20.0 40.00 5.50 • 0.01-0.05 PICCO R 016.0400-10 16.0 4.00 8.00 10.0 30.00 6.00 • 0.01-0.05 PICCO R 016.0400-20 16.0 4.00 8.00 20.0 40.00 6.00 • 0.01-0.05 PICCO R 020.0300-25 20.0 3.00 8.00 25.0 45.00 5.50 • 0.01-0.05 PICCO R 020.0300-30 20.0 3.00 8.00 30.0 50.00 5.50 • 0.01-0.04 PICCO R 020.0300-35 20.0 3.00 8.00 35.0 55.00 5.50 • 0.01-0.04 PICCO R 020.0300-40 20.0 3.00 8.00 40.0 60.00 5.50 • 0.01-0.04 PICCO R 020.0400-25 20.0 4.00 8.00 25.0 45.00 6.00 • 0.01-0.06 PICCO R 020.0400-30 20.0 4.00 8.00 30.0 50.00 6.00 • 0.01-0.06 PICCO R 020.0400-35 20.0 4.00 8.00 35.0 55.00 6.00 • 0.01-0.05 PICCO R 020.0400-40 20.0 4.00 8.00 40.0 60.00 6.00 • 0.01-0.05 PICCO R 020.0500-20 20.0 5.00 8.00 20.0 40.00 6.50 • 0.02-0.06 PICCO R 020.0500-25 20.0 5.00 8.00 25.0 45.00 6.50 • 0.02-0.06 PICCO R 020.0500-30 20.0 5.00 8.00 30.0 50.00 6.50 • 0.02-0.06 PICCO R 020.0500-35 20.0 5.00 8.00 35.0 55.00 6.50 • 0.02-0.05 PICCO R 020.0500-40 20.0 5.00 8.00 40.0 60.00 6.50 • 0.02-0.05 • All inserts have two coolant holes which may be used with coolant pressure up to 100 bars • For detailed cutting data, see page 678 (1) Minimum axial grooving diameter (2) Minimum overhang OAL PICJ RF-D8-T CDX DCONMS (Face Grooving) Inserts with an Internal Coolant DAXN Channel for Deep Face Grooving a CW CW OHN Recommended Dimensions Machining Data f face-groove IC908 Designation DAXN(1) CW CDX DCONMS OHN(2) OAL a (mm/rev) PICJ RF25D8T20-20 8.0 2.50 19.00 7.00 20.0 35.00 5.90 • 0.01-0.04 PICJ RF30D8T20-20 8.0 3.00 19.00 7.00 20.0 35.00 5.90 • 0.02-0.05 PICJ RF30D8T30-30 8.0 3.00 29.00 7.00 30.0 45.00 5.90 • 0.01-0.04 NEW • Only right-hand inserts are available as standard, left-hand inserts on request • All inserts are with sharp corners • For detailed cutting data, see page 678 (1) Minimum axial grooving diameter (2) Minimum overhang 631
