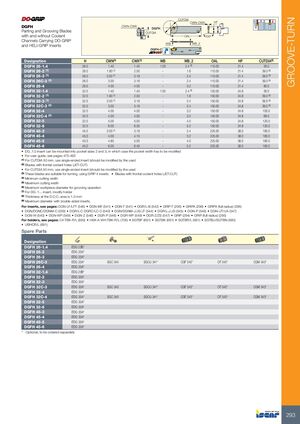

GROOVE-TURN CUTDIA CWN-CWX HF DGFH CWN-CWX DGFH Parting and Grooving Blades H CUTDIA with and without Coolant OAL 150° Channels Carrying DO-GRIP WB WB_2 and HELI-GRIP Inserts DGFH-C Designation H CWN(4) CWX(5) WB WB_2 OAL HF CUTDIA(6) DGFH 26-1.4 26.0 1.40 1.40 1.00 2.4 (8) 110.00 21.4 26.0 DGFH 26-2 (1) 26.0 1.90 (7) 2.50 - 1.6 110.00 21.4 39.0 (9) DGFH 26-3 (1) 26.0 3.00 (7) 3.18 - 2.4 110.00 21.4 39.0 (9) DGFH 26C-3 (2) 26.0 3.00 3.18 - 2.4 110.00 21.4 39.0 (9) DGFH 26-4 26.0 4.00 4.00 - 3.2 110.00 21.4 80.0 DGFH 32-1.4 32.0 1.40 1.40 1.00 2.4 (8) 150.00 24.8 26.0 DGFH 32-2 (1) 32.0 1.90 (7) 2.50 - 1.8 150.00 24.8 39.0 (9) DGFH 32-3 (1) 32.0 3.00 (7) 3.18 - 2.4 150.00 24.8 39.0 (9) DGFH 32C-3 (2) 32.0 3.00 3.18 - 2.4 150.00 24.8 39.0 (9) DGFH 32-4 32.0 4.00 4.00 - 3.2 150.00 24.8 100.0 DGFH 32C-4 (3) 32.0 4.00 4.00 - 3.2 150.00 24.8 69.0 DGFH 32-5 32.0 5.00 5.00 - 4.0 150.00 24.8 120.0 DGFH 32-6 32.0 6.00 6.35 - 5.2 150.00 24.8 120.0 DGFH 45-3 45.0 3.00 (7) 3.18 - 2.4 225.00 38.0 160.0 DGFH 45-4 45.0 4.00 4.10 - 3.2 225.00 38.0 160.0 DGFH 45-5 45.0 4.80 5.00 - 4.0 225.00 38.0 160.0 DGFH 45-6 45.0 6.00 6.40 - 5.2 225.00 38.0 160.0 • DG..1.0 insert can be mounted into pocket sizes 2 and 3, in which case the pocket width has to be modified • For user guide, see pages 475-492 (1) For CUTDIA 50 mm, use single-ended insert (should be modified by the user) (2) Blades with frontal coolant holes (JET-CUT) • For CUTDIA 50 mm, use single-ended insert (should be modified by the user) (3) These blades are suitable for turning, using GRIP 4 inserts • Blades with frontal coolant holes (JET-CUT) (4) Minimum cutting width (5) Maximum cutting width (6) Maximum workpiece diameter for grooving operation (7) For DG. 1... insert, modify holder (8) Thickness at the D.O.C. area is 1.0 mm (9) Maximum diameter with double-sided inserts. For inserts, see pages: DGN-LF/LFT (546) • DGN-MF (541) • DGN-T (541) • DGR/L-B (542) • GRIP-T (295) • GRIPA (296) • GRIPA (full radius) (296) • DGN/DGNC/DGNM-C (539) • DGR/L-C DGRC/LC-C (540) • DGN/DGNM-J/JS/JT (544) • DGR/L-J/JS (545) • DGN-P (548) • DGN-UT/UA (547) • DGN-W (540) • DGN-WP (549) • DGN-Z (546) • DGR-P (548) • DGR-WP (549) • DGR-Z/ZS (547) • GRIP (294) • GRIP (full radius) (295) For holders, see pages: C#-TBK-R/L (695) • HSK A-WH-TBK-R/L (706) • SGTBF (691) • SGTBK (691) • SGTBR/L (691) • SGTBU/SGTBN (690) • UBHCR/L (691) Spare Parts Designation DGFH 26-1.4 EDG 23B* DGFH 26-2 EDG 23A* DGFH 26-3 EDG 23A* DGFH 26C-3 EDG 23A* SGC 340 SGCU 341* CGF 343* CF 343* CGM 343* DGFH 26-4 EDG 23A* DGFH 32-1.4 EDG 23B* DGFH 32-2 EDG 33A* DGFH 32-3 EDG 33A* DGFH 32C-3 EDG 33A* SGC 340 SGCU 341* CGF 343* CF 343* CGM 343* DGFH 32-4 EDG 33A* DGFH 32C-4 EDG 33A* SGC 340 SGCU 341* CGF 343* CF 343* CGM 343* DGFH 32-5 EDG 33A* DGFH 32-6 EDG 33A* DGFH 45-3 EDG 33A* DGFH 45-4 EDG 33A* DGFH 45-5 EDG 33A* DGFH 45-6 EDG 33A* * Optional, to be ordered separately 293
