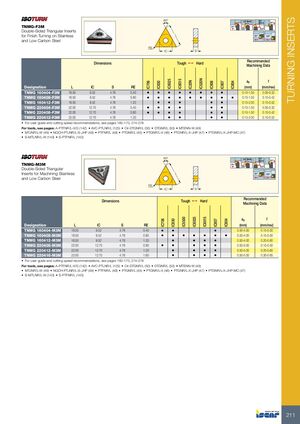

TURNING INSERTS 60° 22°MAX 55° MAX 91º TNMG-F3M 91º 93 º 60º Double-Sided Triangular Inserts for Finish Turning on Stainless L 91º 95º and Low Carbon Steel RE IC S Recommended Dimensions Tough 1 Hard Machining Data IC520N ap f IC6025 IC6015 IC20N IC706 IC830 IC806 IC807 IC804 Designation L IC S RE (mm) (mm/rev) TNMG 160404-F3M 16.50 9.52 4.76 0.40 • • • • • • • • 0.10-1.50 0.05-0.32 TNMG 160408-F3M 16.50 9.52 4.76 0.80 • • • • • • • • • 0.10-1.50 0.10-0.42 TNMG 160412-F3M 16.50 9.52 4.76 1.20 • • • • • 0.15-2.00 0.15-0.52 TNMG 220404-F3M 22.00 12.70 4.76 0.40 • • • • • • 0.10-1.50 0.05-0.32 TNMG 220408-F3M 22.00 12.70 4.76 0.80 • • • • • • 0.10-1.50 0.10-0.42 TNMG 220412-F3M 22.00 12.70 4.76 1.20 • • • • 0.15-2.00 0.15-0.52 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A-PTFNR/L-X/G (142) • AVC-PTLNR/L (125) • C#-DTGNR/L (50) • DTGNR/L (50) • MTENN-W (49) • MTJNR/L-W (49) • NQCH-PTJNR/L-S-JHP (48) • PTFNR/L (48) • PTGNR/L (45) • PTGNR/L-X (46) • PTGNR/L-X-JHP (47) • PTGNR/L-X-JHP-MC (47) • S-MTLNR/L-W (143) • S-PTFNR/L (143) 60° 22°MAX 55° MAX 91º TNMG-M3M 91º 93 º 60º Double-Sided Triangular Inserts for Machining Stainless L 91º 95º and Low Carbon Steel RE IC S Recommended Dimensions Tough 1 Hard Machining Data ap f IC5500 IC6025 IC6015 IC706 IC830 IC807 Designation L IC S RE IC804 (mm) (mm/rev) TNMG 160404-M3M 16.50 9.52 4.76 0.40 • • • 0.50-4.00 0.15-0.50 TNMG 160408-M3M 16.50 9.52 4.76 0.80 • • • • • • • 0.50-4.00 0.15-0.50 TNMG 160412-M3M 16.50 9.52 4.76 1.20 • • • • 0.50-4.00 0.20-0.60 TNMG 220408-M3M 22.00 12.70 4.76 0.80 • • • • • 0.50-5.00 0.15-0.50 TNMG 220412-M3M 22.00 12.70 4.76 1.20 • • • • 0.50-5.00 0.20-0.60 TNMG 220416-M3M 22.00 12.70 4.76 1.60 • • • • 0.50-5.00 0.30-0.65 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A-PTFNR/L-X/G (142) • AVC-PTLNR/L (125) • C#-DTGNR/L (50) • DTGNR/L (50) • MTENN-W (49) • MTJNR/L-W (49) • NQCH-PTJNR/L-S-JHP (48) • PTFNR/L (48) • PTGNR/L (45) • PTGNR/L-X (46) • PTGNR/L-X-JHP (47) • PTGNR/L-X-JHP-MC (47) • S-MTLNR/L-W (143) • S-PTFNR/L (143) 211
