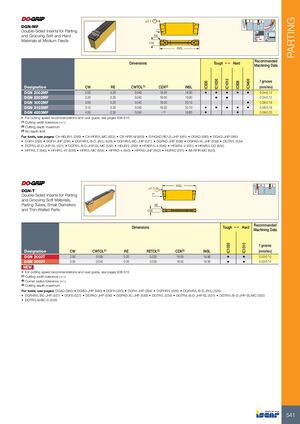

PARTING ±0.1 DGN-MF Double-Sided Inserts for Parting 7° and Grooving Soft and Hard RE Materials at Medium Feeds CW INSL Recommended Dimensions Tough 1 Hard Machining Data f groove IC1030 IC1010 IC5400 IC830 IC808 Designation CW RE CWTOL(1) CDX(2) INSL (mm/rev) DGN 2002MF 2.00 0.20 0.040 18.00 19.90 • • • • • 0.04-0.12 DGN 2202MF 2.20 0.20 0.040 18.00 19.90 • • 0.04-0.12 DGN 3002MF 3.00 0.20 0.040 18.00 20.10 • 0.06-0.18 DGN 3102MF 3.10 0.20 0.040 18.00 20.10 • • • • • 0.06-0.18 DGN 4003MF 4.00 0.30 0.040 - (3) 18.80 • • 0.08-0.20 • For cutting speed recommendations and user guide, see pages 606-615 (1) Cutting width tolerance (+/-) (2) Cutting depth maximum (3) No depth limit For tools, see pages: C#-HELIR/L (289) • C#-HFIR/L-MC (653) • CR HFIR-M (655) • D/HGAD RE/LE-JHP (561) • DGAQ (580) • DGAQ-JHP (580) • DGFH (293) • DGFH-JHP (294) • DGFHR/L-B-D..(R/L) (528) • DGFHR/L-BC-JHP (527) • DGPAD-JHP (538) • DGPAD-XL-JHP (538) • DGTR/L (534) • DGTR/L-B-D-JHP-SL (531) • DGTR/L-B-D-JHP-SL-MC (532) • HELIR/L (290) • HFAER/L-4 (646) • HFAIR/L-4 (651) • HFAIR/L-DG (652) • HFFR/L-T (645) • HFHR/L-4T (639) • HFIR/L-MC (654) • HFPAD-4 (643) • HFPAD-JHP (642) • HGPAD (291) • IM-HFIR-MC (653) INSL ±0.1 DGN-T Double-Sided Inserts for Parting 7º and Grooving Soft Materials, Parting Tubes, Small Diameters RE and Thin-Walled Parts CW Recommended Dimensions Tough 1 Hard Machining Data f groove IC1030 IC1010 Designation CW CWTOL(1) RE RETOL(2) CDX(3) INSL (mm/rev) DGN 2002T 2.00 0.030 0.20 0.020 18.00 19.86 • • 0.03-0.10 DGN 3002T 3.00 0.040 0.20 0.030 18.00 19.95 • • 0.03-0.14 NEW • For cutting speed recommendations and user guide, see pages 606-615 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) (3) Cutting depth maximum For tools, see pages: DGAQ (580) • DGAQ-JHP (580) • DGFH (293) • DGFH-JHP (294) • DGFHR/L (526) • DGFHR/L-B-D..(R/L) (528) • DGFHR/L-BC-JHP (527) • DGFS (527) • DGPAD-JHP (538) • DGPAD-XL-JHP (538) • DGTR/L (534) • DGTR/L-B-D-JHP-SL (531) • DGTR/L-B-D-JHP-SL-MC (532) • DGTR/L-B/BC-D (533) 541
