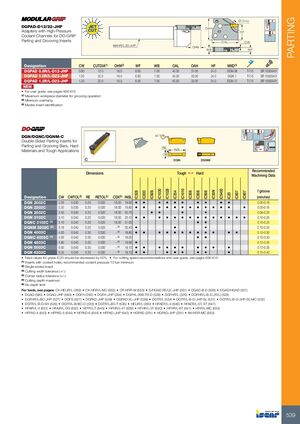

PARTING Ø Dmax DGPAD-D12/22-JHP OAH Adapters with High-Pressure HF Coolant Channels for DO-GRIP Parting and Grooving Inserts OAL CW MAHR/L 20-JHP OHN WB WF Designation CW CUTDIA(1) OHN(2) WF WB OAL OAH HF MIID(3) DGPAD 0.8R/L-D12-JHP 0.80 12.0 16.0 6.65 7.00 40.50 31.00 24.0 DGN 08 T-7/5 SR 10500401 DGPAD 1.0R/L-D22-JHP 1.00 22.0 16.0 6.60 7.00 40.50 33.00 24.0 DGN 1 T-7/5 SR 10500401 DGPAD 1.2R/L-D22-JHP 1.20 22.0 16.0 6.50 7.00 40.50 33.00 24.0 DGN 12 T-7/5 SR 10500401 NEW • For user guide, see pages 606-615 (1) Maximum workpiece diameter for grooving operation (2) Minimum overhang (3) Master insert identification DGN/DGNC/DGNM-C ±0.1 Double-Sided Parting Inserts for Parting and Grooving Bars, Hard RE Materials and Tough Applications INSL CW DGN DGNM Recommended Dimensions Tough 1 Hard Machining Data f groove IC1030 IC1028 IC1010 IC5400 IC30N IC328 IC830 IC928 IC354 IC308 IC808 IC908 IC807 IC907 IC20 Designation CW CWTOL(3) RE RETOL(4) CDX(5) INSL (mm/rev) DGN 2002C 2.00 0.030 0.20 0.020 18.00 19.90 • • • • • • • • • • 0.05-0.16 DGN 2202C 2.20 0.030 0.20 0.020 18.00 19.80 • • • • • • • • • • • • • 0.05-0.16 DGN 2502C 2.50 0.030 0.20 0.020 18.00 20.70 • • • • 0.08-0.20 DGN 3102C 3.10 0.040 0.20 0.020 18.00 20.10 • • • • • • • • • • • • • • 0.10-0.25 DGNC 3102C (1) 3.10 0.040 0.20 0.020 18.00 21.00 • • 0.10-0.25 DGNM 3202C (2) 3.18 0.040 0.20 0.020 - (6) 20.40 • • • 0.10-0.25 DGN 4003C 4.00 0.040 0.30 0.030 - (6) 18.80 • • • • • • • • • • • • 0.10-0.30 DGNC 4003C (1) 4.00 0.040 0.30 0.030 - (6) 19.00 • • 0.10-0.30 DGN 4803C 4.80 0.040 0.30 0.030 - (6) 19.90 • 0.12-0.35 DGN 5003C 5.00 0.040 0.30 0.030 - (6) 19.10 • • • • • • • • • • 0.12-0.35 DGN 6303C 6.35 0.040 0.35 0.030 - (6) 19.10 • • • • • • • • 0.15-0.40 • Feed values for grade IC20 should be decreased by 50% • For cutting speed recommendations and user guide, see pages 606-615 (1) Inserts with coolant holes, recommended coolant pressure 10 bar minimum (2) Single-ended insert (3) Cutting width tolerance (+/-) (4) Corner radius tolerance (+/-) (5) Cutting depth maximum (6) No depth limit For tools, see pages: C#-HELIR/L (289) • C#-HFIR/L-MC (653) • CR HFIR-M (655) • D/HGAD RE/LE-JHP (561) • DGAD-B-D (538) • DGAD/HGAD (537) • DGAQ (580) • DGAQ-JHP (580) • DGFH (293) • DGFH-JHP (294) • DGFHL-26B-TR-D (528) • DGFHR/L (526) • DGFHR/L-B-D..(R/L) (528) • DGFHR/L-BC-JHP (527) • DGFS (527) • DGPAD-JHP (538) • DGPAD-XL-JHP (538) • DGTR/L (534) • DGTR/L-B-D-JHP-SL (531) • DGTR/L-B-D-JHP-SL-MC (532) • DGTR/L-B-D-SH (529) • DGTR/L-B/BC-D (533) • DGTR/L-BC-T (535) • HELIR/L (290) • HFAER/L-4 (646) • HFAER/L-5T, 6T (647) • HFAIR/L-4 (651) • HFAIR/L-DG (652) • HFFR/L-T (645) • HFHR/L-4T (639) • HFHR/L-5T (640) • HFHR/L-6T (641) • HFIR/L-MC (654) • HFPAD-4 (643) • HFPAD-5 (644) • HFPAD-6 (644) • HFPAD-JHP (642) • HGPAD (291) • HGPAD-JHP (291) • IM-HFIR-MC (653) 539
