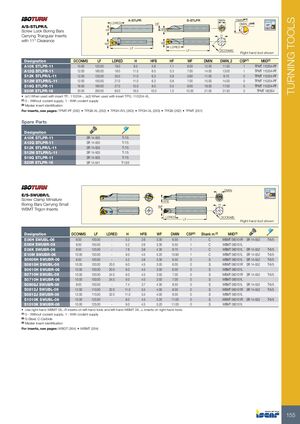

Токарные инструменты Iscar (часть 1) 2026 - страница 157

TURNING TOOLS A-STLPR S-STLPR DMIN DMIN(a1) LDRED HF DMIN_2(a2) 95º A/S-STLPR/L Screw Lock Boring Bars HF HFB Carrying Triangular Inserts H with 11° Clearance WF WF LF LDRED LF DCONMS Right hand tool shown Designation DCONMS LF LDRED H HFB HF WF DMIN DMIN_2 CSP(1) MIID(2) A10K STLPR-11 10.00 125.00 18.0 9.5 5.8 1.1 6.00 12.00 11.00 1 TPMT 110204-PF A12Q STLPR-11 12.00 180.00 18.0 11.5 6.0 0.3 7.00 14.00 13.00 1 TPMT 110204-PF S12K STLPR/L-11 12.00 125.00 35.0 11.0 6.3 0.8 5.60 11.00 9.70 0 TPMT 110204-PF S12M STLPR/L-11 12.00 150.00 27.0 11.0 6.3 0.8 7.00 15.00 14.00 0 TPMT 110204-PF S16Q STLPR-11 16.00 180.00 27.0 15.0 8.0 0.5 9.00 18.00 17.00 0 TPMT 110204-PF S20R STLPR-16 20.00 200.00 63.0 18.0 10.0 1.0 10.20 21.50 21.50 0 TPMT 160304 • (a1) When used with insert TP.. 110204-.. (a2) When used with insert TPG. 110204-XL (1) 0 - Without coolant supply, 1 - With coolant supply (2) Master insert identification For inserts, see pages: TPMT-PF (262) • TPGB-XL (262) • TPGH-R/L (263) • TPGH-XL (263) • TPGB (262) • TPMT (261) Spare Parts Designation A10K STLPR-11 SR 14-505 T-7/5 A12Q STLPR-11 SR 14-505 T-7/5 S12K STLPR/L-11 SR 14-505 T-7/5 S12M STLPR/L-11 SR 14-505 T-7/5 S16Q STLPR-11 SR 14-505 T-7/5 S20R STLPR-16 SR 14-541 T-15/5 DMIN 93º E/S-SWUBR/L Screw Clamp Miniature HFB Boring Bars Carrying Small WF H WBMT Trigon Inserts LDRED DCONMS LF Right hand tool shown Designation DCONMS LF LDRED H HFB WF DMIN CSP(1) Shank m.(2) MIID(3) E06H SWUBL-06 6.00 100.00 - 5.2 2.6 3.30 6.50 1 C WBMT 060101R SR 14-552 T-6/5 E06H SWUBR-06 6.00 100.00 - 5.2 2.6 3.30 6.50 1 C WBMT 060101L E08K SWUBR-06 8.00 125.00 - 7.6 3.8 4.30 8.70 1 C WBMT 060101L SR 14-552 T-6/5 E10M SWUBR-06 10.00 150.00 - 9.0 4.5 5.20 10.90 1 C WBMT 060101L SR 14-552 T-6/5 S0606H SWUBR-06 6.00 100.00 - 5.2 2.6 3.30 6.50 0 S WBMT 060101L SR 14-552 T-6/5 S0610H SWUBL-06 10.00 100.00 20.0 9.0 4.5 3.00 6.00 0 S WBMT 060101R SR 14-552 T-6/5 S0610H SWUBR-06 10.00 100.00 20.0 9.0 4.5 3.00 6.00 0 S WBMT 060101L S0710H SWUBL-06 10.00 100.00 24.0 9.0 4.5 3.50 7.00 0 S WBMT 060101R SR 14-552 T-6/5 S0710H SWUBR-06 10.00 100.00 24.0 9.0 4.5 3.50 7.00 0 S WBMT 060101L S0808J SWUBR-06 8.00 100.00 - 7.4 3.7 4.30 8.50 0 S WBMT 060101L SR 14-552 T-6/5 S0812J SWUBL-06 12.00 110.00 32.0 11.0 5.5 4.00 8.00 0 S WBMT 060101R SR 14-552 T-6/5 S0812J SWUBR-06 12.00 110.00 32.0 11.0 5.5 4.00 8.00 0 S WBMT 060101L S1010K SWUBL-06 10.00 125.00 - 9.0 4.5 5.20 11.00 0 S WBMT 060101R SR 14-552 T-6/5 S1010K SWUBR-06 10.00 125.00 - 9.0 4.5 5.20 11.00 0 S WBMT 060101L • Use right-hand WBMT 06...R inserts on left-hand tools and left-hand WBMT 06...L inserts on right-hand tools. (1) 0 - Without coolant supply, 1 - With coolant supply (2) S-Steel, C-Carbide (3) Master insert identification For inserts, see pages: WBGT (264) • WBMT (264) 155
