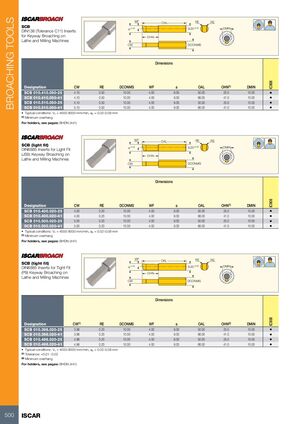

BROACHING TOOLS WF OAL RE RE SCB 9.20+0.05 DMIN a+0.05 DIN138 (Tolerance C11) Inserts for Keyway Broaching on OHN Lathe and Milling Machines CW DCONMS Dimensions IC908 Designation CW RE DCONMS WF a OAL OHN(1) DMIN SCB 010.410.050-25 4.10 0.50 10.00 4.00 9.00 50.00 25.0 10.00 • SCB 010.410.050-41 4.10 0.50 10.00 4.00 9.00 66.00 41.0 10.00 • SCB 010.510.050-25 5.10 0.50 10.00 4.00 9.00 50.00 25.0 10.00 • SCB 010.510.050-41 5.10 0.50 10.00 4.00 9.00 66.00 41.0 10.00 • • Typical conditions: Vc = 4000-8000 mm/min, ap = 0.02-0.08 mm (1) Minimum overhang For holders, see pages: BHDN (441) WF OAL RE RE SCB (light fit) DMIN a+0.05 9.20+0.05 DIN6885 Inserts for Light Fit (JS9) Keyway Broaching on OHN Lathe and Milling Machines CW DCONMS Dimensions IC908 Designation CW RE DCONMS WF a OAL OHN(1) DMIN SCB 010.400.020-25 4.00 0.20 10.00 4.00 9.00 50.00 25.0 10.00 • SCB 010.400.020-41 4.00 0.20 10.00 4.00 9.00 66.00 41.0 10.00 • SCB 010.500.020-25 5.00 0.20 10.00 4.00 9.00 50.00 25.0 10.00 • SCB 010.500.020-41 5.00 0.20 10.00 4.00 9.00 66.00 41.0 10.00 • • Typical conditions: Vc = 4000-8000 mm/min, ap = 0.02-0.08 mm (1) Minimum overhang For holders, see pages: BHDN (441) WF RE RE OAL SCB (tight fit) a +0.05 9.20+0.05 DMIN DIN6885 Inserts for Tight Fit (P9) Keyway Broaching on OHN Lathe and Milling Machines CW DCONMS Dimensions IC908 Designation CW(1) RE DCONMS WF a OAL OHN(2) DMIN SCB 010.398.020-25 3.98 0.20 10.00 4.00 9.00 50.00 25.0 10.00 • SCB 010.398.020-41 3.98 0.20 10.00 4.00 9.00 66.00 41.0 10.00 • SCB 010.498.020-25 4.98 0.20 10.00 4.00 9.00 50.00 25.0 10.00 • SCB 010.498.020-41 4.98 0.20 10.00 4.00 9.00 66.00 41.0 10.00 • • Typical conditions: Vc = 4000-8000 mm/min, ap = 0.02-0.08 mm (1) Tolerance: +0.01 -0.02 (2) Minimum overhang For holders, see pages: BHDN (441) 500 ISCAR
