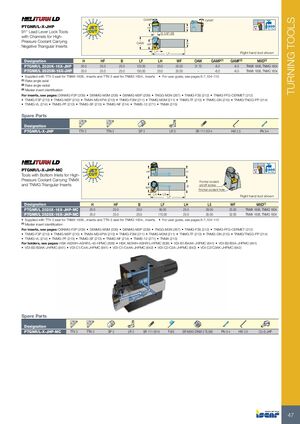

TURNING TOOLS GAMP GAMF PTGNR/L-X-JHP HF H 91º Bar Max 91° Lead Lever Lock Tools G 1/8"-28 with Channels for High- Pressure Coolant Carrying OAW B WF Negative Triangular Inserts LH Right hand tool shown LF Designation H HF B LF LH WF OAW GAMP(1) GAMF(2) MIID(3) PTGNR/L 2020K-16X-JHP 20.0 20.0 20.0 125.00 20.0 25.00 31.70 -6.0 -6.0 TNMX 1606, TNMG 1604 PTGNR/L 2525M-16X-JHP 25.0 25.0 25.0 150.00 20.0 32.00 - -6.0 -6.0 TNMX 1606, TNMG 1604 • Supplied with TTX 3 seat for TNMX 1606.. inserts and TTN 3 seat for TNMG 1604.. inserts • For user guide, see pages 6-7,104-110 (1) Rake angle axial (2) Rake angle radial (3) Master insert identification For inserts, see pages: D6NMG-F3P (209) • D6NMG-M3M (209) • D6NMG-M3P (209) • TNGG-M3N (267) • TNMG-F3S (212) • TNMG-FFG-CERMET (212) • TNMG-F3P (210) • TNMG-M3P (210) • TNMX-M3/4PW (210) • TNMG-F3M (211) • TNMG-M3M (211) • TNMG-TF (213) • TNMG-GN (215) • TNMG/TNGG-PP (214) • TNMG-VL (214) • TNMG-PF (213) • TNMG-SF (213) • TNMG-NF (214) • TNMS-12 (271) • TNMA (215) Spare Parts Designation PTGNR/L-X-JHP TTX 3 TTN 3 SP 3 LR 3 SR 117-2014 HW 2.5 PN 3-4 PTGNR/L-X-JHP-MC HF H 91º Bar Max Tools with Bottom Inlets for High- Pressure Coolant Carrying TNMX Frontal coolant and TNMG Triangular Inserts B on/off screw WF Frontal coolant hole LH L5 LF Right hand tool shown Designation H HF B LF LH L5 WF MIID(1) PTGNR/L 2020X-16X-JHP-MC 20.0 20.0 20.0 95.00 25.0 29.00 25.00 TNMX 1606, TNMG 1604 PTGNR/L 2525X-16X-JHP-MC 25.0 25.0 25.0 110.00 25.0 35.00 32.00 TNMX 1606, TNMG 1604 • Supplied with TTX 3 seat for TNMX 1606.. inserts and TTN 3 seat for TNMG 1604.. inserts. • For user guide, see pages 6-7,104-110 (1) Master insert identification For inserts, see pages: D6NMG-F3P (209) • D6NMG-M3M (209) • D6NMG-M3P (209) • TNGG-M3N (267) • TNMG-F3S (212) • TNMG-FFG-CERMET (212) • TNMG-F3P (210) • TNMG-M3P (210) • TNMX-M3/4PW (210) • TNMG-F3M (211) • TNMG-M3M (211) • TNMG-TF (213) • TNMG-GN (215) • TNMG/TNGG-PP (214) • TNMG-VL (214) • TNMG-PF (213) • TNMG-SF (213) • TNMG-NF (214) • TNMS-12 (271) • TNMA (215) For holders, see pages: HSK A63WH-ASHR/L-45-HPMC (838) • HSK A63WH-ASHR/L-HPMC (838) • VDI-B1/B4AK-JHPMC (841) • VDI-B2/B3A-JHPMC (841) • VDI-B2/B3AK-JHPMC (841) • VDI-C1/C4A-JHPMC (841) • VDI-C1/C4AK-JHPMC (842) • VDI-C2/C3A-JHPMC (842) • VDI-C2/C3AK-JHPMC (842) Spare Parts Designation PTGNR/L-X-JHP-MC TTX 3 TTN 3 SP 3 LR 3 SR 117-2014 T-8/5 SR M5X5 DIN913 TL360 PN 3-4 HW 2.5 CU-S-JHP 47
