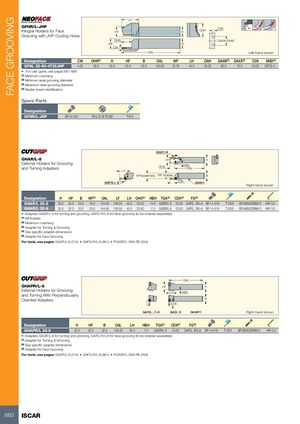

FACE GROOVING LH GFHR/L-JHP CDX Integral Holders for Face HF H OAH Grooving with JHP Cooling Holes OHN DAXN-DAXX WF B CW OAL Left-hand shown Designation CW OHN(1) H HF B OAL WF LH OAH DAXN(2) DAXX(3) CDX MIID(4) GFHL 25-60-4T25JHP 4.00 26.0 25.0 25.0 25.0 150.00 25.79 44.0 35.00 60.0 75.0 25.00 GFCG 4... • For user guide, see pages 681-688 (1) Minimum overhang (2) Minimum axial grooving diameter (3) Maximum axial grooving diameter (4) Master insert identification Spare Parts Designation GFHR/L-JHP SR 34-533 PLG G1/8 TL360 T-6/5 GADR-8 GHAR/L-8 HF H External Holders for Grooving HBH OHX and Turning Adapters OAL LH WF(assembly) WF (holder) B GAFG-L-8 CDX GHAR Right-hand shown Designation H HF B WF(1) OAL LF LH OHX(2) HBH TGA(3) CDX(4) FG(5) GHAR/L 25-8 25.0 25.0 25.0 16.0 124.50 109.50 45.0 25.50 14.0 GADR/L 8 25.50 GAFG...R/L-8 SR 14-519 T-20/5 SR M6X25DIN912 HW 5.0 GHAR/L 32-8 32.0 32.0 32.0 23.0 144.50 129.50 45.0 25.50 7.0 GADR/L 8 25.50 GAFG...R/L-8 SR 14-519 T-20/5 SR M6X25DIN912 HW 5.0 • Adapters GADR/L-8 for turning and grooving, GAFG-R/L-8 for face-grooving (to be ordered separately) (1) WF(holder) (2) Maximum overhang (3) Adapter for Turning & Grooving (4) See specific adapter dimensions (5) Adapter for Face Grooving For tools, see pages: GADR/L-8 (314) • GAFG-R/L-8 (661) • PCADR/L 34N-RE (354) OAL GHAPR/L-8 HF H External Holders for Grooving HBH LH and Turning With Perpendicularly B Oriented Adapters CDX GAFG…R-8 GADL 8 GHAPR Right-hand shown Designation H HF B OAL LH HBH TGA(1) CDX(2) FG(3) GHAPR/L 32-8 32.0 32.0 32.0 155.00 30.0 7.0 GADR/L 8 25.50 GAFG...R/L-8 SR 14-519 T-20/5 SR M6X25DIN912 HW 5.0 • Adapters GADR/L-8 for turning and grooving, GAFG-R/L-8 for face-grooving (to be ordered separately) (1) Adapter for Turning & Grooving (2) See specific adapter dimensions (3) Adapter for Face Grooving For tools, see pages: GADR/L-8 (314) • GAFG-R/L-8 (661) • PCADR/L 34N-RE (354) 660 ISCAR
