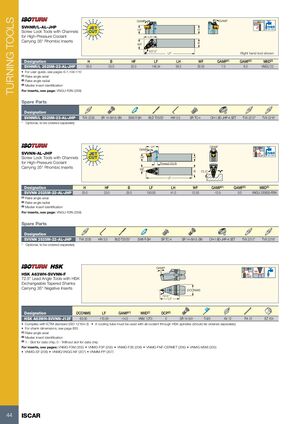

Токарные инструменты Iscar (часть 1) 2026 - страница 46

TURNING TOOLS GAMP GAMF 107.5º SVHNR/L-AL-JHP HF H Bar Max Screw Lock Tools with Channels for High-Pressure Coolant LH Carrying 35° Rhombic Inserts B WF 107.5˚ LF Right hand tool shown Designation H B HF LF LH WF GAMP(1) GAMF(2) MIID(3) SVHNR/L 2525M-22-AL-JHP 25.0 25.0 25.0 146.34 36.3 30.03 7.0 6.0 VNGU 22.. • For user guide, see pages 6-7,104-110 (1) Rake angle axial (2) Rake angle radial (3) Master insert identification For inserts, see page: VNGU-R3N (268) Spare Parts Designation SVHNR/L 2525M-22-AL-JHP TVX 2230 SR 14-591/L-SN SW6-T-SH BLD T20/S7 HW 3.0 SR TC-4 CH-1.9D-JHP-A SET TVX 2212* TVX 2216* * Optional, to be ordered separately LH GAMF 70°MAX GAMP SVVNN-AL-JHP 72.5º Bar Max Screw Lock Tools with Channels HF H for High-Pressure Coolant Thread G1/8 Carrying 35° Rhombic Inserts WF B 72.5˚ LF Designation H HF B LF LH WF GAMP(1) GAMF(2) MIID(3) SVVNN 2525M-22-AL-JHP 25.0 25.0 25.0 150.00 41.0 12.50 -13.5 0.0 VNGU 220630-R3N (1) Rake angle axial (2) Rake angle radial (3) Master insert identification For inserts, see page: VNGU-R3N (268) Spare Parts Designation SVVNN 2525M-22-AL-JHP TVX 2230 HW 3.0 BLD T20/S7 SW6-T-SH SR TC-4 SR 14-591/L-SN CH-1.9D-JHP-A SET TVX 2212* TVX 2216* * Optional, to be ordered separately GAMP 70°MAX HSK A63WH-SVVNN-F 72.5º 72.5° Lead Angle Tools with HSK Exchangeable Tapered Shanks Carrying 35° Negative Inserts DCONMS 72.5° LF Designation DCONMS LF GAMP(1) MIID(2) DCP(3) HSK A63WH-SVVNN-J12F 63.00 110.00 -14.0 VNM. 12T3 0 SR 14-551 T-9/5 AV 12 PA 12 EZ 104 • Complies with ICTM standard (ISO 12164-3) • A cooling tube must be used with all coolant through HSK spindles (should be ordered separately) • For shank dimensions, see page 835 (1) Rake angle axial (2) Master insert identification (3) 1 - Slot for data chip, 0 - Without slot for data chip For inserts, see pages: VNMG-F3M (205) • VNMG-F3P (205) • VNMG-F3S (206) • VNMG-FNF-CERMET (206) • VNMG-M3M (205) • VNMG-SF (206) • VNMG/VNGG-NF (207) • VNMM-PP (207) 44 ISCAR
