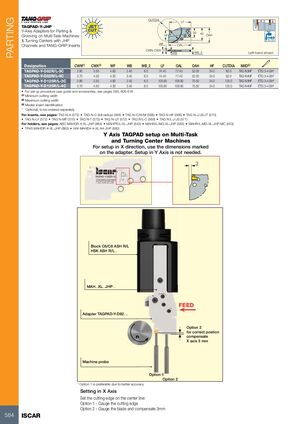

PARTING CUTDIA LF TAGPAD-Y-JHP Y-Axis Adapters for Parting & 33 43 OAH Grooving on Multi-Task Machines HF & Turning Centers with JHP Bar Max WF Channels and TANG-GRIP Inserts OAL CWN-CWX WB WB_2 Left-hand shown Designation CWN(1) CWX(2) WF WB WB_2 LF OAL OAH HF CUTDIA MIID(3) TAGPAD-Y-D82R/L-3C 2.80 3.50 4.80 2.40 6.0 74.40 77.40 52.00 34.0 82.0 TAG N3HF ETG 3-4-SH* TAGPAD-Y-D82R/L-4C 3.70 4.50 4.30 3.40 6.0 74.40 77.40 52.00 34.0 82.0 TAG N4HF ETG 3-4-SH* TAGPAD-Y-D125R/L-3C 2.80 3.50 4.80 2.40 6.0 105.90 108.90 75.50 34.0 125.0 TAG N3HF ETG 3-4-SH* TAGPAD-Y-D125R/L-4C 3.70 4.50 4.30 3.40 6.0 105.90 108.90 75.50 34.0 125.0 TAG N4HF ETG 3-4-SH* • For set up procedure user guide and accessories, see pages 583, 606-616 (1) Minimum cutting width (2) Maximum cutting width (3) Master insert identification * Optional, to be ordered separately For inserts, see pages: TAG N-A (573) • TAG N-C (full radius) (569) • TAG N-C/W/M (568) • TAG N-HF (568) • TAG N-J/JS/JT (570) • TAG N-LF (572) • TAG N-MF (570) • TAG N-T (573) • TAG N-UT (572) • TAG R/L-C (569) • TAG R/L-J/JS (571) For holders, see pages: ABC MAHDR-#-XL-JHP (884) • MAHPR/L-XL-JHP (642) • MAHR/L-MG-XL-JHP (563) • MAHR/L-MG-XL-JHP-MC (563) • TR45 MAHDR-#-XL-JHP (883) • V## MAHD#-#-XL-##-JHP (880) Y Axis TAGPAD setup on Multi-Task and Turning Center Machines For setup in X direction, use the dimensions marked on the adapter. Setup in Y Axis is not needed. 3 Block C6/C8 ASH R/L HSK ASH R/L… MAH…XL…JHP… FEED Adapter TAGPAD-Y-D82…. Option 2 for correct postion n compensate X axis 3 mm Machine probe Option 1 Option 2 * Option 1 is preferable due to better accuracy Setting in X Axis Set the cutting edge on the center line: Option 1 - Gauge the cutting edge Option 2 - Gauge the blade and compensate 3mm 584 ISCAR
