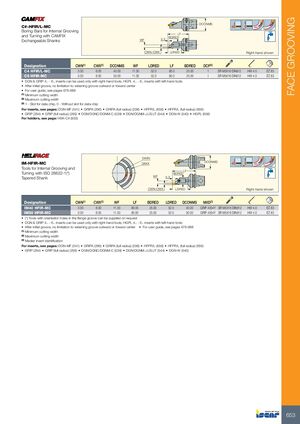

FACE GROOVING DCONMS C#-HFIR/L-MC Boring Bars for Internal Grooving LF and Turning with CAMFIX BDRED 5.3 Exchangeable Shanks WF CWN-CWX LDRED Right-hand shown Designation CWN(1) CWX(2) DCONMS WF LDRED LF BDRED DCP(3) C4 HFIR/L-MC 3.00 6.00 40.00 11.30 52.0 80.0 25.00 1 SR M5X16 DIN912 HW 4.0 EZ 83 C5 HFIR-MC 3.00 6.00 50.00 11.30 52.0 80.0 25.00 1 SR M5X16 DIN912 HW 4.0 EZ 83 • DGN & GRIP 4.. - 6.. inserts can be used only with right-hand tools, HGPL 4.. - 6.. inserts with left-hand tools • After initial groove, no limitation to widening groove outward or toward center • For user guide, see pages 676-688 (1) Minimum cutting width (2) Maximum cutting width (3) 1 - Slot for data chip, 0 - Without slot for data chip For inserts, see pages: DGN-MF (541) • GRIPA (296) • GRIPA (full radius) (296) • HFPR/L (656) • HFPR/L (full radius) (656) • GRIP (294) • GRIP (full radius) (295) • DGN/DGNC/DGNM-C (539) • DGN/DGNM-J/JS/JT (544) • DGN-W (540) • HGPL (658) For holders, see page: HSK-C# (835) DAXN DCONMS IM-HFIR-MC DAXX Tools for Internal Grooving and LF Turning with ISO 26622-1(*) BDRED WF 5.3 Tapered Shank CWN-CWX LDRED Right-hand shown Designation CWN(1) CWX(2) WF LF BDRED LDRED DCONMS MIID(3) IM40 HFIR-MC 3.00 6.00 11.30 80.00 25.00 52.0 40.00 GRIP 4004Y SR M5X16 DIN912 HW 4.0 EZ 83 IM50 HFIR-MC 3.00 6.00 11.30 80.00 25.00 52.0 50.00 GRIP 4004Y SR M5X16 DIN912 HW 4.0 EZ 83 • (*) Tools with orientation holes in the flange groove can be supplied on request • DGN & GRIP 4.. - 6.. inserts can be used only with right-hand tools, HGPL 4.. - 6.. inserts with left-hand tools • After initial groove, no limitation to widening groove outward or toward center • For user guide, see pages 676-688 (1) Minimum cutting width (2) Maximum cutting width (3) Master insert identification For inserts, see pages: DGN-MF (541) • GRIPA (296) • GRIPA (full radius) (296) • HFPR/L (656) • HFPR/L (full radius) (656) • GRIP (294) • GRIP (full radius) (295) • DGN/DGNC/DGNM-C (539) • DGN/DGNM-J/JS/JT (544) • DGN-W (540) 653
