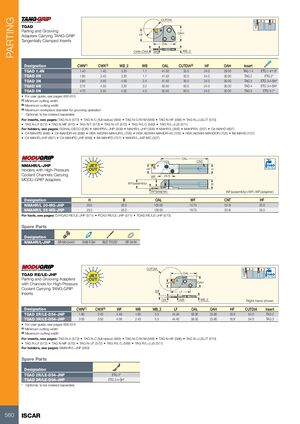

Токарные инструменты Iscar (часть 1) 2026 - страница 562

PARTING CUTDIA TGAD Parting and Grooving OAH Adapters Carrying TANG-GRIP HF Tangentially Clamped Inserts OAL CWN-CWX WB WB_2 Designation CWN(1) CWX(2) WB_2 WB OAL CUTDIA(3) HF OAH Insert TGAD 1.4N 1.40 1.40 3.20 1.1 41.50 32.0 24.0 29.00 TAG 1.4 ETG 1.4/1.6* TGAD 2N 1.80 2.40 3.20 1.7 41.50 32.0 24.0 30.00 TAG 2 ETG 2* TGAD 3N 2.80 3.50 4.00 2.4 41.50 35.0 24.0 30.00 TAG 3 ETG 3-4-SH* TGAD 4N 3.70 4.50 3.20 3.2 50.50 50.0 24.0 30.00 TAG 4 ETG 3-4-SH* TGAD 5N 4.70 5.50 4.00 4.0 50.50 50.0 24.0 30.00 TAG 5 ETG 5-7* • For user guide, see pages 606-615 (1) Minimum cutting width (2) Maximum cutting width (3) Maximum workpiece diameter for grooving operation * Optional, to be ordered separately For inserts, see pages: TAG N-A (573) • TAG N-C (full radius) (569) • TAG N-C/W/M (568) • TAG N-HF (568) • TAG N-J/JS/JT (570) • TAG N-LF (572) • TAG N-MF (570) • TAG N-T (573) • TAG N-UT (572) • TAG R/L-C (569) • TAG R/L-J/JS (571) For holders, see pages: DGHAL-DECO (536) • MAHPR/L-JHP (308) • MAHR/L-JHP (306) • MAHR/L (306) • MAHPR/L (307) • C#-MAHD (697) • C#-MAHPD (698) • C#-MAHDR-45 (696) • HSK A63WH-MAHUR/L (706) • HSK A63WH-MAHDR-45 (705) • HSK A63WH-MAHDOR (705) • IM-MAHD (707) • C#-MAHD-JHP (697) • C#-MAHPD-JHP (698) • IM-MAHPD (707) • MAHR/L-JHP-MC (307) OAL CNT NMAHR/L-JHP Bar Max Holders with High-Pressure HF H Coolant Channels Carrying WF 24.6 MODU-GRIP Adapters WF(assembly) B WF(adapter) WF(assembly)=WF+WF(adapter) Designation H B OAL WF CNT HF NMAHR/L 20-MG-JHP 20.0 20.0 100.00 14.70 G1/8 20.0 NMAHR/L 25-MG-JHP 25.0 25.0 100.00 19.70 G1/8 25.0 For tools, see pages: D/HGAD RE/LE-JHP (571) • PCAD RE/LE-JHP (571) • TGAD RE/LE-JHP (570) Spare Parts Designation NMAHR/L-JHP SR M5-04451 SW6-T-SH BLD T20/S7 OR 5X1N CUTDIA OAL TGAD RE/LE-JHP Bar Max Parting and Grooving Adapters HF OAH with Channels for High-Pressure Coolant Carrying TANG-GRIP WF LF Inserts CW WB WB_2 Right-hand shown Designation CWN(1) CWX(2) WF WB WB_2 LF OAL OAH HF CUTDIA Insert TGAD 2R/LE-D54-JHP 1.80 2.40 4.48 1.65 5.3 44.40 58.30 25.80 18.9 54.0 TAG 2 TGAD 3R/LE-D54-JHP 3.00 3.50 4.08 2.45 5.3 44.40 58.30 25.80 18.9 54.0 TAG 3 • For user guide, see pages 606-615 (1) Minimum cutting width (2) Maximum cutting width For inserts, see pages: TAG N-A (573) • TAG N-C (full radius) (569) • TAG N-C/W/M (568) • TAG N-HF (568) • TAG N-J/JS/JT (570) • TAG N-LF (572) • TAG N-MF (570) • TAG N-UT (572) • TAG R/L-C (569) • TAG R/L-J/JS (571) For holders, see pages: NMAHR/L-JHP (560) Spare Parts Designation TGAD 2R/LE-D54-JHP ETG 2* TGAD 3R/LE-D54-JHP ETG 3-4-SH* * Optional, to be ordered separately 560 ISCAR
