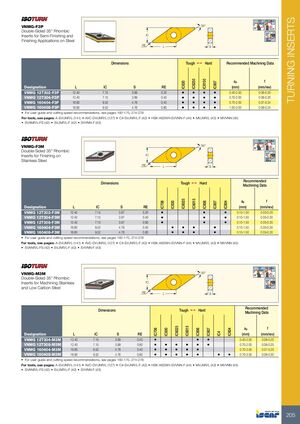

TURNING INSERTS 50° 70°MAX MAX VNMG-F3P 35° 93° 72.5º Double-Sided 35° Rhombic 93º Inserts for Semi-Finishing and IC 50° Finishing Applications on Steel MAX RE L S Dimensions Tough 1 Hard Recommended Machining Data ap f IC8250 IC8150 IC830 IC807 Designation L IC S RE (mm) (mm/rev) VNMG 12T302-F3P 12.40 7.15 3.89 0.20 • • • • 0.40-2.00 0.08-0.20 VNMG 12T304-F3P 12.40 7.15 3.89 0.40 • • • • 0.70-2.00 0.08-0.20 VNMG 160404-F3P 16.60 9.52 4.76 0.40 • • • • 0.70-2.00 0.07-0.24 VNMG 160408-F3P 16.60 9.52 4.76 0.80 • • • • 1.00-3.00 0.08-0.24 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A-SVUNR/L (141) • AVC-DVUNR/L (127) • C#-SVJNR/L-F (42) • HSK A63WH-SVVNN-F (44) • MVJNR/L (43) • MVVNN (45) • SVANR/L-FS (42) • SVJNR/L-F (42) • SVVNN-F (43) 50° 70°MAX MAX VNMG-F3M 35° 93° 72.5º Double-Sided 35° Rhombic 93º Inserts for Finishing on IC 50° Stainless Steel MAX RE L S Recommended Dimensions Tough 1 Hard Machining Data ap f IC6025 IC6015 IC706 IC830 IC806 IC807 IC804 Designation L IC S RE (mm) (mm/rev) VNMG 12T302-F3M 12.40 7.15 3.97 0.20 • • • 0.10-1.50 0.03-0.20 VNMG 12T304-F3M 12.40 7.15 3.97 0.40 • • • 0.10-1.50 0.05-0.30 VNMG 12T308-F3M 12.40 7.15 3.97 0.80 • • • 0.10-1.50 0.05-0.30 VNMG 160404-F3M 16.60 9.52 4.76 0.40 • • • • 0.10-1.50 0.05-0.30 VNMG 160408-F3M 16.60 9.52 4.76 0.80 • • • • 0.10-1.50 0.05-0.30 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A-SVUNR/L (141) • AVC-DVUNR/L (127) • C#-SVJNR/L-F (42) • HSK A63WH-SVVNN-F (44) • MVJNR/L (43) • MVVNN (45) • SVANR/L-FS (42) • SVJNR/L-F (42) • SVVNN-F (43) 50° 70°MAX MAX VNMG-M3M 35° 93° 72.5º Double-Sided 35° Rhombic 93º Inserts for Machining Stainless IC 50° and Low Carbon Steel MAX RE L S Recommended Dimensions Tough 1 Hard Machining Data ap f IC6025 IC6015 IC706 IC830 IC806 IC807 IC804 IC4 Designation L IC S RE (mm) (mm/rev) VNMG 12T304-M3M 12.40 7.15 3.89 0.40 • • • 0.40-2.00 0.08-0.20 VNMG 12T308-M3M 12.40 7.15 3.89 0.80 • • • • • • 0.70-2.00 0.08-0.20 VNMG 160404-M3M 16.60 9.52 4.76 0.40 • • • • • 0.70-3.00 0.07-0.20 VNMG 160408-M3M 16.60 9.52 4.76 0.80 • • • • • • • 0.70-3.50 0.08-0.30 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A-SVUNR/L (141) • AVC-DVUNR/L (127) • C#-SVJNR/L-F (42) • HSK A63WH-SVVNN-F (44) • MVJNR/L (43) • MVVNN (45) • SVANR/L-FS (42) • SVJNR/L-F (42) • SVVNN-F (43) 205
