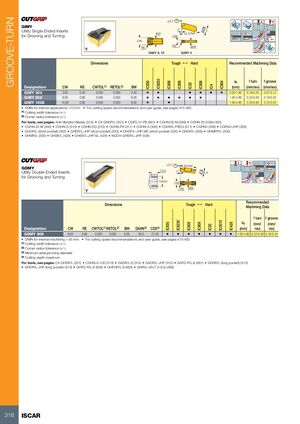

Токарные инструменты Iscar (часть 1) 2026 - страница 320

GROOVE-TURN ±0.1 GIMY Utility Single-Ended Inserts 7˚ 5 BW 15.3 Ref. for Grooving and Turning CW CW RE BW RE GIMY 8, 10 GIMY 3 Dimensions Tough 1 Hard Recommended Machining Data ap f turn f groove IC8250 IC830 IC808 IC908 IC806 IC804 IC20 IC4 Designation CW RE CWTOL(1) RETOL(2) BW (mm) (mm/rev) (mm/rev) GIMY 304 3.00 0.40 0.050 0.050 2.40 • • • • • • 0.50-1.80 0.16-0.20 0.07-0.12 GIMY 808 8.00 0.80 0.050 0.050 6.00 • • • • • • 1.00-4.80 0.32-0.56 0.18-0.34 GIMY 1008 10.00 0.80 0.050 0.050 8.00 • • 1.00-4.60 0.35-0.65 0.22-0.40 • DMIN for internal applications =70 mm • For cutting speed recommendations and user guide, see pages 475-492 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) For tools, see pages: Anti-Vibration Blades (312) • C#-GHDR/L (301) • CGFG 51-P8 (661) • CGHN 26-M (399) • CGHN 32-DGM (400) • CGHN 32-M (400) • CGHN-D (310) • CGHN-DG (310) • CGHN-P8 (311) • CGHN-S (309) • CGHR/L-P8DG (311) • CGPAD (308) • CGPAD-JHP (309) • GHDR/L (short pocket) (302) • GHDR/L-JHP (short pocket) (303) • GHDR/L-JHP-MC (short pocket) (304) • GHGR/L (305) • GHMPR/L (300) • GHMR/L (300) • GHSR/L (428) • GHSR/L-JHP-SL (429) • NQCH-GHSR/L-JHP (428) ±0.1 30 Ref. GDMY Utility Double-Ended Inserts CDX 7° 6.4 for Grooving and Turning DAXN CW RE BW Recommended Dimensions Tough 1 Hard Machining Data f turn f groove ap IC8250 IC5010 (mm/ (mm/ IC830 IC808 IC908 IC428 IC20 Designation CW RE CWTOL(1) RETOL(2) BW DAXN(3) CDX(4) (mm) rev) rev) GDMY 808 8.00 0.80 0.050 0.050 6.00 50.0 27.00 • • • • • • • 1.00-4.80 0.32-0.56 0.18-0.34 • DMIN for internal machining = 65 mm • For cutting speed recommendations and user guide, see pages 475-492 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) (3) Minimum axial grooving diameter (4) Cutting depth maximum For tools, see pages: C#-GHDR/L (301) • CGHN-8-10D (315) • GADR/L-8 (314) • GADR/L-JHP (315) • GAFG-R/L-8 (661) • GHDR/L (long pocket) (313) • GHDR/L-JHP (long pocket) (313) • GHFG-R/L-8 (659) • GHFGR/L-8 (659) • GHIR/L (W=7.0-8.3) (398) 318 ISCAR
