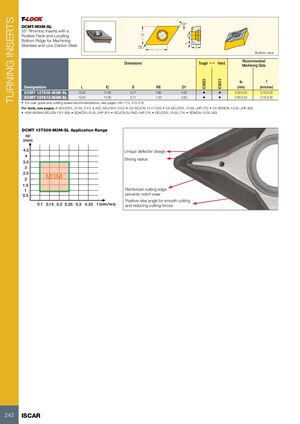

TURNING INSERTS 55° DCMT-M3M-SL 55° Rhombic Inserts with a Positive Flank and Locating IC D1 Bottom Ridge for Machining 7° Stainless and Low Carbon Steel RE S L Bottom view Recommended Dimensions Tough 1 Hard Machining Data ap f IC6025 IC6015 Designation L IC S RE D1 (mm) (mm/rev) DCMT 13T508-M3M-SL 13.40 11.00 5.11 0.80 4.50 • • 0.90-3.50 0.10-0.25 DCMT 13T512-M3M-SL 13.40 11.00 5.11 1.20 4.50 • • 0.90-3.50 0.15-0.30 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A-SDUCR/L-13-SL (147) • AVC-SDJCN-Y (101) • C#-SDJCN-13-Y (100) • C#-SDJCR/L-13-SL-JHP (75) • C#-SDNCN-13-SL-JHP (83) • HSK A63WH-SDJCN-13-Y (99) • SDACR/L-S-SL-JHP (81) • SDJCR-SL-PAD-JHP (74) • SDJCR/L-13-SL (74) • SDNCN-13-SL (83) DCMT 13T508-M3M-SL Application Range ap (mm) 4.5 Unique deflector design 4 Strong radius 3.5 3 2.5 2 M3M 1.5 1 Reinforced cutting edge 0.5 prevents notch wear Positive rake angle for smooth cutting 0.1 0.15 0.2 0.25 0.3 0.35 f (mm/rev) and reducing cutting forces 242 ISCAR
