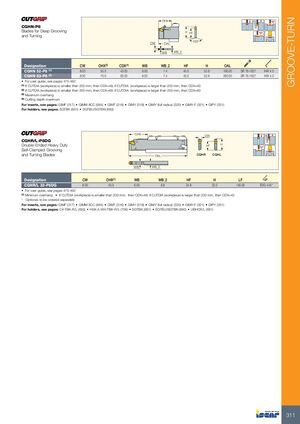

GROOVE-TURN OHX CGHN-P8 Blades for Deep Grooving H HF and Turning 150˚ CW OAL WB WB_2 Designation CW OHX(3) CDX(4) WB WB_2 HF H OAL CGHN 52-P8 (1) 8.00 50.0 43.00 6.00 7.4 45.0 52.6 190.00 SR 76-1637 HW 4.0 CGHN 53-P8 (2) 8.00 70.0 63.00 6.00 7.4 45.0 52.6 260.00 SR 76-1637 HW 4.0 • For user guide, see pages 475-492 (1) If CUTDIA (workpiece) is smaller than 200 mm, then CDX=48; if CUTDIA (workpiece) is larger than 200 mm, then CDX=43 (2) If CUTDIA (workpiece) is smaller than 200 mm, then CDX=68; if CUTDIA (workpiece) is larger than 200 mm, then CDX=63 (3) Maximum overhang (4) Cutting depth maximum For inserts, see pages: GIMF (317) • GIMM 8CC (664) • GIMT (316) • GIMY (318) • GIMY (full radius) (320) • GIMY-F (321) • GIPY (331) For holders, see pages: SGTBK (691) • SGTBU/SGTBN (690) OHX CW CGHR/L-P8DG Double-Ended Heavy Duty HF H Self-Clamped Grooving and Turning Blades OAL CGHR CGHL WB WB_2 Designation CW OHX(1) WB WB_2 HF H LF CGHR/L 32-P8DG 8.00 40.0 6.00 6.8 24.8 32.0 150.00 EDG 44A* • For user guide, see pages 475-492 (1) Minimum overhang • If CUTDIA (workpiece) is smaller than 200 mm, then CDX=48; if CUTDIA (workpiece) is larger than 200 mm, then CDX=43 * Optional, to be ordered separately For inserts, see pages: GIMF (317) • GIMM 8CC (664) • GIMT (316) • GIMY (318) • GIMY (full radius) (320) • GIMY-F (321) • GIPY (331) For holders, see pages: C#-TBK-R/L (695) • HSK A-WH-TBK-R/L (706) • SGTBK (691) • SGTBU/SGTBN (690) • UBHCR/L (691) 311
