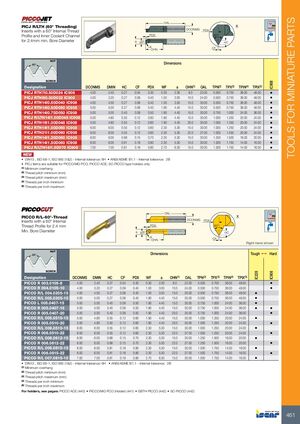

Токарные инструменты Iscar (часть 1) 2026 - страница 463

TOOLS FOR MINIATURE PARTS OAL PICJ R/LTH (60° Threading) X DCONMS PDX Inserts with a 60° Internal Thread Profile and Inner Coolant Channel PDX 60° for 2.4mm min. Bore Diameter a WF HC x OHN CF NUT 60° Dimensions SCREW IC908 Designation DCONMS DMIN HC CF PDX WF a OHN(1) OAL TPN(2) TPX(3) TPIN(4) TPIX(5) PICJ RTH7I0.50D024 IC908 4.00 2.40 0.27 0.04 0.30 0.30 2.30 8.0 22.00 0.500 0.700 36.00 48.00 • PICJ RTH9I0.50D032 IC908 4.00 3.20 0.27 0.09 0.40 1.00 3.00 10.0 24.00 0.500 0.750 36.00 48.00 • PICJ RTH14I0.50D040 IC908 4.00 4.00 0.27 0.06 0.40 1.50 3.50 15.0 30.00 0.500 0.750 36.00 48.00 • PICJ RTH14I0.50D050 IC908 5.00 5.00 0.27 0.06 0.40 1.90 4.40 15.0 30.00 0.500 0.750 36.00 48.00 • PICJ RTH14I0.75D050 IC908 5.00 5.00 0.40 0.09 0.50 1.90 4.40 15.0 30.00 0.750 1.000 24.00 36.00 • PICJ R/LTH14I1.00D048 IC908 5.00 4.80 0.55 0.12 0.60 1.90 4.40 15.0 30.00 1.000 1.250 20.00 24.00 • PICJ RTH19I1.00D048 IC908 5.00 4.80 0.55 0.12 0.60 1.90 4.40 20.0 35.00 1.000 1.250 20.00 24.00 • PICJ RTH14I1.00D060 IC908 6.00 6.00 0.55 0.12 0.60 2.30 5.30 15.0 30.00 1.000 1.250 20.00 24.00 • PICJ RTH21I1.00D060 IC908 6.00 6.00 0.55 0.12 0.60 2.30 5.30 22.0 37.00 1.000 1.250 20.00 24.00 • PICJ RTH14I1.25D060 IC908 6.00 6.00 0.68 0.15 0.70 2.30 5.30 15.0 30.00 1.250 1.500 16.00 20.00 • PICJ RTH14I1.50D060 IC908 6.00 6.00 0.81 0.18 0.80 2.30 5.30 15.0 30.00 1.500 1.750 14.00 16.00 • PICJ R/LTH14I1.5D070 IC908 7.00 7.00 0.81 0.18 0.80 2.70 6.30 15.0 30.00 1.500 1.750 14.00 16.00 • NEW • DIN13 , ISO 68-1, ISO 965 (1&2) - Internal tolerance: 6H • ANSI/ASME B1.1 - Internal tolerance: 2B • PICJ items are suitable for PICCO/MG PCO, PICCO ACE, SC-PICCO type holders only (1) Minimum overhang (2) Thread pitch minimum (mm) (3) Thread pitch maximum (mm) (4) Threads per inch minimum (5) Threads per inch maximum OAL PICCO R/L-60°-Thread X DCONMS PDX Inserts with a 60° Internal Thread Profile for 2.4 mm PDX 60° Min. Bore Diameter a WF HC x OHN CF Right-hand shown NUT 60° Dimensions Tough 1 Hard SCREW IC228 IC908 Designation DCONMS DMIN HC CF PDX WF a OHN(1) OAL TPN(2) TPX(3) TPIN(4) TPIX(5) PICCO R 003.0105-8 4.00 2.40 0.27 0.04 0.30 0.30 2.30 8.0 22.00 0.500 0.700 36.00 48.00 • PICCO R 004.0105-10 4.00 3.20 0.27 0.09 0.40 1.00 3.00 10.0 24.00 0.500 0.750 36.00 48.00 • PICCO R/L 004.0205-15 4.00 4.00 0.27 0.06 0.40 1.50 3.50 15.0 30.00 0.500 0.750 36.00 48.00 • PICCO R/L 005.0205-15 5.00 5.00 0.27 0.06 0.40 1.90 4.40 15.0 30.00 0.500 0.750 36.00 48.00 • PICCO L 005.0407-15 5.00 5.00 0.40 0.09 0.50 1.90 4.40 15.0 30.00 0.750 1.000 24.00 36.00 • PICCO R 005.0407-15 5.00 5.00 0.40 0.09 0.50 1.90 4.40 15.0 30.00 0.750 1.000 24.00 36.00 • • PICCO R 005.0407-20 5.00 5.00 0.40 0.09 0.50 1.90 4.40 20.0 35.00 0.750 1.000 24.00 36.00 • PICCO R/L 005.0510-15 5.00 4.80 0.55 0.12 0.60 1.90 4.40 15.0 30.00 1.000 1.250 20.00 24.00 • PICCO R 005.0510-20 5.00 4.80 0.55 0.12 0.60 1.90 4.40 20.0 35.00 1.000 1.250 20.00 24.00 • PICCO R/L 006.0510-15 6.00 6.00 0.55 0.12 0.60 2.30 5.30 15.0 30.00 1.000 1.250 20.00 24.00 • PICCO R 006.0510-22 6.00 6.00 0.55 0.12 0.60 2.30 5.30 22.0 37.00 1.000 1.250 20.00 24.00 • PICCO R/L 006.0612-15 6.00 6.00 0.68 0.15 0.70 2.30 5.30 15.0 30.00 1.250 1.500 16.00 20.00 • PICCO R 006.0612-22 6.00 6.00 0.68 0.15 0.70 2.30 5.30 22.0 37.00 1.250 1.500 16.00 20.00 • PICCO R/L 006.0815-15 6.00 6.00 0.81 0.18 0.80 2.30 5.30 15.0 30.00 1.500 1.750 14.00 16.00 • PICCO R 006.0815-22 6.00 6.00 0.81 0.18 0.80 2.30 5.30 22.0 37.00 1.500 1.750 14.00 16.00 • PICCO R/L 007.0815-15 7.00 7.00 0.81 0.18 0.80 2.70 6.30 15.0 30.00 1.500 1.750 14.00 16.00 • • DIN13 , ISO 68-1, ISO 965 (1&2) - Internal tolerance: 6H • ANSI/ASME B1.1 - Internal tolerance: 2B (1) Minimum overhang (2) Thread pitch minimum (mm) (3) Thread pitch maximum (mm) (4) Threads per inch minimum (5) Threads per inch maximum For holders, see pages: PICCO ACE (440) • PICCO/MG PCO (Holder) (441) • SBTH-PICCO (442) • SC-PICCO (442) 461
