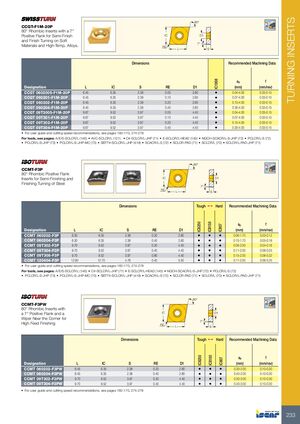

TURNING INSERTS 80° CCGT-F1M-20P 95º 80° Rhombic Inserts with a 7° Positive Flank for Semi-Finish IC D1 and Finish Turning on Soft 7° Materials and High-Temp. Alloys. RE L S Dimensions Recommended Machining Data ap f IC1008 Designation L IC S RE D1 (mm) (mm/rev) CCGT 0602005-F1M-20P 6.45 6.35 2.38 0.05 2.80 • 0.04-4.00 0.03-0.15 CCGT 060201-F1M-20P 6.45 6.35 2.38 0.10 2.80 • 0.07-4.00 0.03-0.15 CCGT 060202-F1M-20P 6.45 6.35 2.38 0.20 2.80 • 0.15-4.00 0.03-0.15 CCGT 060204-F1M-20P 6.45 6.35 2.38 0.40 2.80 • 0.30-4.00 0.03-0.15 CCGT 09T3005-F1M-20P 9.67 9.52 3.97 0.05 4.40 • 0.04-4.00 0.03-0.15 CCGT 09T301-F1M-20P 9.67 9.52 3.97 0.10 4.40 • 0.07-4.00 0.03-0.15 CCGT 09T302-F1M-20P 9.67 9.52 3.97 0.20 4.40 • 0.15-4.00 0.03-0.15 CCGT 09T304-F1M-20P 9.67 9.52 3.97 0.40 4.40 • 0.30-4.00 0.03-0.15 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/E/S-SCLCR/L (146) • AVC-SCLCR/L (121) • C#-SCLCR/L-JHP (71) • E-SCLCR/L-HEAD (145) • NQCH-SCACR/L-S-JHP (72) • PCLCR/L-S (72) • PCLCR/L-S-JHP (73) • PCLCR/L-S-JHP-MC (73) • SBTT#-SCLCR/L-JHP (418) • SCACR/L-S (72) • SCLCR-PAD (71) • SCLCR/L (70) • SCLCR/L-PAD-JHP (71) 80° CCMT-F3P 95º 80° Rhombic Positive Flank Inserts for Semi-Finishing and IC D1 Finishing Turning of Steel 7° RE L S Dimensions Tough 1 Hard Recommended Machining Data ap f IC8250 IC8150 IC807 Designation L IC S RE D1 (mm) (mm/rev) CCMT 060202-F3P 6.30 6.35 2.38 0.20 2.80 • • • 0.06-1.70 0.03-0.12 CCMT 060204-F3P 6.30 6.35 2.38 0.40 2.80 • • • 0.10-1.70 0.05-0.18 CCMT 09T302-F3P 9.70 9.52 3.97 0.20 4.40 • • • 0.08-2.00 0.04-0.16 CCMT 09T304-F3P 9.70 9.52 3.97 0.40 4.40 • • • 0.11-2.00 0.06-0.25 CCMT 09T308-F3P 9.70 9.52 3.97 0.80 4.40 • • • 0.15-2.00 0.08-0.32 CCMT 120404-F3P 12.90 12.70 4.76 0.40 5.50 • • • 0.11-2.00 0.06-0.25 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/E/S-SCLCR/L (146) • C#-SCLCR/L-JHP (71) • E-SCLCR/L-HEAD (145) • NQCH-SCACR/L-S-JHP (72) • PCLCR/L-S (72) • PCLCR/L-S-JHP (73) • PCLCR/L-S-JHP-MC (73) • SBTT#-SCLCR/L-JHP (418) • SCACR/L-S (72) • SCLCR-PAD (71) • SCLCR/L (70) • SCLCR/L-PAD-JHP (71) 80° CCMT-F3PW 95º 80° Rhombic Inserts with a 7° Positive Flank and a IC D1 Wiper Near the Corner for 7° High Feed Finishing RE L S Dimensions Tough 1 Hard Recommended Machining Data ap f IC8250 IC8150 IC807 Designation L IC S RE D1 (mm) (mm/rev) CCMT 060202-F3PW 6.45 6.35 2.38 0.20 2.80 • • • 0.30-2.00 0.10-0.30 CCMT 060204-F3PW 6.45 6.35 2.38 0.40 2.80 • • • 0.40-2.00 0.10-0.30 CCMT 09T302-F3PW 9.70 9.52 3.97 0.20 4.40 • • • 0.30-3.00 0.10-0.30 CCMT 09T304-F3PW 9.70 9.52 3.97 0.40 4.40 • • • 0.40-3.00 0.10-0.30 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 233
