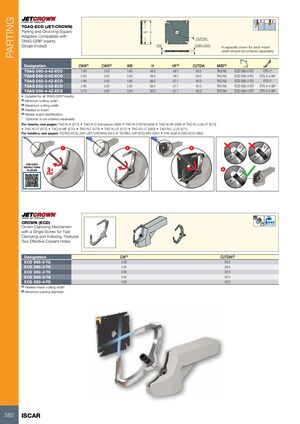

PARTING TGAQ-ECD (JET-CROWN) Parting and Grooving Square HF H Adapters Compatible with CUTDIA TANG-GRIP Inserts (Single-Ended) WB CWN-CWX A separate crown for each insert width should be ordered separately Designation CWN(1) CWX(2) WB H HF(3) CUTDIA MIID(4) TGAQ D65-2-4Z-ECD 1.80 2.50 1.65 49.0 48.7 65.0 TAG N2 ECD D65-2-TG* ETG 2* TGAQ D65-3-4Z-ECD 2.80 3.50 2.50 49.0 48.7 65.0 TAG N3 ECD D65-3-TG* ETG 3-4-SH* TGAQ D82-2-4Z-ECD 1.80 2.50 1.65 58.0 57.7 82.0 TAG N2 ECD D82-2-TG* ETG 2* TGAQ D82-3-4Z-ECD 2.80 3.50 2.50 58.0 57.7 82.0 TAG N3 ECD D82-3-TG* ETG 3-4-SH* TGAQ D82-4-4Z-ECD 3.70 4.50 3.40 58.0 57.7 82.0 TAG N4 ECD D82-4-TG* ETG 3-4-SH* • Suitable for all TANG-GRIP inserts (1) Minimum cutting width (2) Maximum cutting width (3) Related to insert (4) Master insert identification * Optional, to be ordered separately For inserts, see pages: TAG N-A (573) • TAG N-C (full radius) (569) • TAG N-C/W/M (568) • TAG N-HF (568) • TAG N-J/JS/JT (570) • TAG N-LF (572) • TAG N-MF (570) • TAG N-T (573) • TAG N-UT (572) • TAG R/L-C (569) • TAG R/L-J/JS (571) For holders, see pages: TGTBQ-ECD-JHP (JET-CROWN) (581) • TGTBQ-JHP-ECD-MC (581) • V## SQ#-#-D65-ECD (882) 1 2 3 FOR VIDEO INSTRUCTIONS SCAN ME 3x 4 360° CROWN (ECD) Bar Max Crown Clamping Mechanism with a Single Screw for Fast Clamping and Indexing. Features Two Effective Coolant Holes Designation CW(1) CUTDIA(2) ECD D65-2-TG 2.00 65.0 ECD D65-3-TG 3.00 65.0 ECD D82-2-TG 2.00 82.0 ECD D82-3-TG 3.00 82.0 ECD D82-4-TG 4.00 82.0 (1) Related insert cutting width (2) Maximum parting diameter 582 ISCAR
