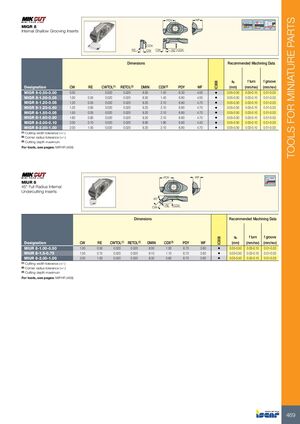

TOOLS FOR MINIATURE PARTS PDY WF MIGR 8 Internal Shallow Grooving Inserts CDX RE CW CW RE CDX Dimensions Recommended Machining Data ap f turn f groove IC908 Designation CW RE CWTOL(1) RETOL(2) DMIN CDX(3) PDY WF (mm) (mm/rev) (mm/rev) MIGR 8-0.50-0.00 0.50 - 0.020 0.020 8.50 1.40 6.30 4.00 • 0.05-0.50 0.03-0.10 0.01-0.03 MIGR 8-1.00-0.05 1.00 0.05 0.020 0.020 8.50 1.40 6.80 4.00 • 0.05-0.50 0.03-0.10 0.01-0.03 MIGR 8-1.20-0.05 1.20 0.05 0.020 0.020 9.20 2.10 6.80 4.70 • 0.05-0.50 0.03-0.10 0.01-0.03 MIGR 8-1.20-0.60 1.20 0.60 0.020 0.020 9.20 2.10 6.80 4.70 • 0.05-0.50 0.03-0.10 0.01-0.03 MIGR 8-1.50-0.05 1.50 0.05 0.020 0.020 9.20 2.10 6.80 4.70 • 0.05-0.50 0.03-0.10 0.01-0.03 MIGR 8-1.60-0.80 1.60 0.80 0.020 0.020 9.20 2.10 6.80 4.70 • 0.05-0.50 0.03-0.10 0.01-0.03 MIGR 8-2.00-0.10 2.00 0.10 0.020 0.020 8.90 1.80 6.80 4.40 • 0.05-0.50 0.03-0.10 0.01-0.03 MIGR 8-2.00-1.00 2.00 1.00 0.020 0.020 9.20 2.10 6.80 4.70 • 0.05-0.50 0.03-0.10 0.01-0.03 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) (3) Cutting depth maximum For tools, see pages: MIFHR (468) PDY WF MIUR 8 45° Full Radius Internal Undercutting Inserts 45° RE CDX CW Dimensions Recommended Machining Data ap f turn f groove IC908 Designation CW RE CWTOL(1) RETOL(2) DMIN CDX(3) PDY WF (mm) (mm/rev) (mm/rev) MIUR 8-1.00-0.50 1.00 0.50 0.020 0.020 8.00 1.00 6.70 3.60 • 0.03-0.50 0.03-0.10 0.01-0.03 MIUR 8-1.5-0.75 1.50 0.75 0.020 0.020 8.10 1.10 6.70 3.60 • 0.03-0.50 0.03-0.10 0.01-0.03 MIUR 8-2.00-1.00 2.00 1.00 0.020 0.020 8.30 0.60 6.70 3.60 • 0.03-0.50 0.03-0.10 0.01-0.03 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) (3) Cutting depth maximum For tools, see pages: MIFHR (468) 469
